Container Straddle Carrier Price, Container Crane, Straddle Carrier Price
Product Description
|

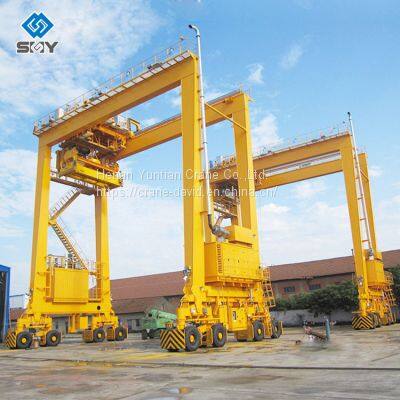

RTG Tyre Crane is composed of gantry, lifting trolley, crane travelling mechanism, cab and electric control system. The gantry is of boxed-shape structure, the girder is bias track double girder and the leg is Type U.
Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
Contact us for more information
|
Features:
|
1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your reques
Please click here for details communication
|
Technological Parameters:
Please contact me for customized parameters
|
| Lifting Capacity (t)101620/1032/1036/1650/10Span (m)18-35Lifting Height (m)10-13Duty ClassA5-A8Speed(m/min)Lifting8.57.97.2/10.47.5/10.47.8/10.56/10.4Trolley43.844.544.541.941.938.13Crane403838404038MotorLiftingYZR180L-6/17YZR225M-8/26YZR225M-8/26YZR200L-6/26YZR280S-10/42YZR200L-6/26YZR280M-10/55YZR225M-6/34YZR280M-10/55YZR200L-6/26TrolleyYZR132M1-6/2.5*2YZR132M2-6/4*2YZR132M2-6/4*2YZR132M1-6/4*2YZR132M1-6/6.3*2YZR132M1-6/6.3*2CraneYZR160L-6/13*2YZR160L-6/13*2YZR160M1-6/6.3*4YZR160L-6/13*2YZR160M2-6/8.5*4YZR160M2-6/8.5*4YZR160L-6/13*4YZR160M2-6/8.5*4YZR160L-6/13*4Weight(t)Trolley99.512161824Total63.2-10078-10679-12095-108106-155195Wheel Pressure (KN)225-295255-373208-289324-334314-363452Steel Track43kg/m50kg/mPower Source3-phase A.C 380V 50HZ (As your demand) |
