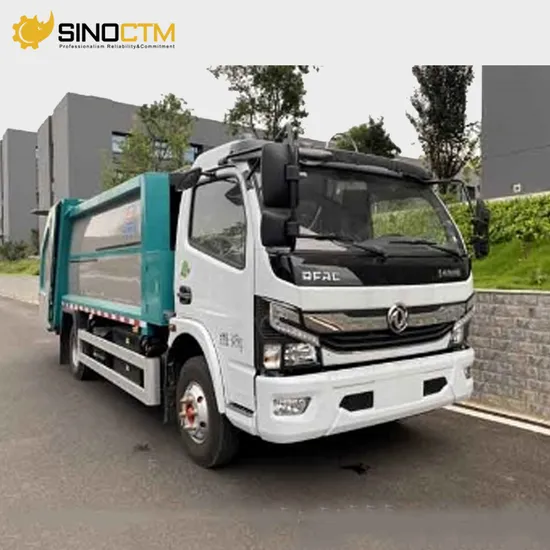

New Design Compactor 6wheel Dongfeng Electric Garbage Transport Truck

Product Description

TJK5120ZYSBEV pure electric compressed garbage truck in the absorption of a variety of domestic and foreign similar products on the basis of the advantages of independent research and development, design of a new generation of products.This series model adopts pure electric vehicle chassis, which is beautiful in appearance, powerful, reliable, safe, environmental protection and economic, and has the leading level in China.

Items		units	SPEC
Announcement of the parameter	Vehicle readiness quality	kg	7950
	Maximum gross mass	kg	11800
	Rated load mass	kg	3655
	Overall dimensions	mm	7795×2340×2530
	Approach Angle/departure Angle	°	19/7
work performance	Effective volume of dustbin	m³	8
	Tank capacity	L	220
	Capacity of filling bucket	m³	0.55
	Width of filling hopper inlet	mm	1430
	Pressure filling operation cycle time	s	≤16
	Feeding operation cycle time (s)	s	≤10
	Unloading operation cycle time (s)	s	≤18
	Garbage compression density	t/m³	0.77
	Maximum crushing compression force	kN	100
	Maximum shirking	kN	150
	Working pressure of hydraulic system	mpa	19.5
Chassis Details	Chassis models		BYD112014EBEVD
	Chassis brand		China brand
	Power battery brand		China brand
	Power battery type		Lithium iron phosphate
	Power battery energy density	wh/kg	151
	Total power of power battery	Kwh	177
	Power cell voltage	V	515
	Power battery rated capacity	Ah	345

The rear of the vehicle is equipped with a double 240L garbage bin lifting device, through the carriage, filler and shovel and other special devices, garbage pouring, crushing or flattening, strong loading, garbage squeezed into the carriage and compaction and shifting, reduce the operator's labor intensity, the whole process can be easily completed by only one person to operate the switch.
The vehicle is mainly suitable for the collection and transfer of barreled, bagged and bulk living garbage in urban residential areas, communities, large factories and mines, institutions and colleges and narrow streets in the old city.This series of compressed garbage truck has the characteristics of simple and beautiful appearance, long continuous working time, low noise and low carbon, humanized control mode, high efficiency and environmental protection, and its comprehensive performance has reached the advanced level of similar international products.
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. ) Heavy Trucks on board for shipping
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
About Us
1 Factory price, more competitive than agent price.
2 Quality: a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.

---
