High Output Plastic Mixing Machine with Heat and Cool Mixing Unit/Mixer Unit

US$6,000.00-13,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SRL

Application Area

Plastic Meterail

Certification

CE, ISO

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Warranty

1 year

Working

High Speed Mixer

Name

High Output Plastic Mixing Machine with Heat and C

Inverter

ABB

Motor

Siemens Beide

Control

PLC

Contactor

Siemens Contactor

Color

Customised

Colling Medium

Water

Weight

3000-4500kg

Voltage

380V 50Hz 3phase(Customized)

Mixer Type

Horizontal Ploughshare Mixer

Layout Type

Horizontal

Operating type

Cycle Operating

Transport Package

Standard Shpping Package

Specification

2mx2mx3.6m

Trademark

CAMEL

Origin

China(Mainland)

HS Code

84778000

Production Capacity

3000 PCS/Year

Product Description

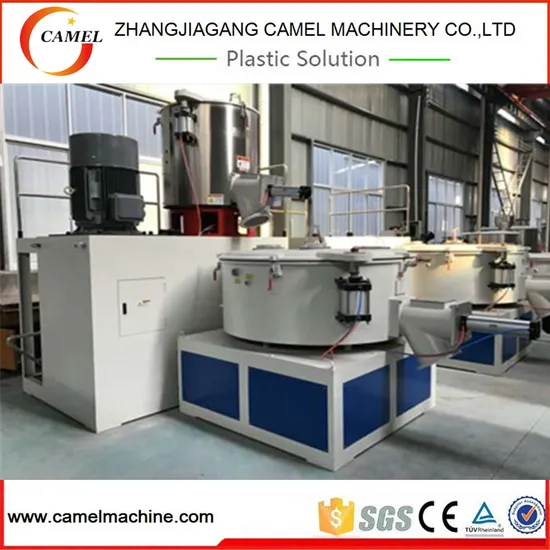

PVC plastic hot and cold mixer
Product Description
The PVC plastic hot and cold mixer is widely used for mixing, drying, and coloring for all kinds of plastic resin, especially for large production capacity. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning. The structure of cooling mixer is horizontal type with spiral-shape stirring blades, without dead corner and prompt discharging within short time.
Technical data:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000
Total capacity(L)	100/200	200/500	300/600	500/1000
Efficient (L)	65/130	130/320	200/400	350/640
Motor power KW	14/22/7.5	30/42/11	40/50/15	47/67/15
Paddle Speed	650/130/180	475/950/130	475/950/130	430/860/60
Water consumption	3T/H	4T/H	4T/H	5T/H
Heat/cooling way	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling
Mixing time(min)	8-10
Outline dimension mm	2500 ×2000×2200	4500 ×2200×2500	4500 ×2200×2500	4600 ×3000×4000
Weight kg	3T	3.5T	3.5T	4.5T

Technical Parameters of PVC horizontal mixer :

Model	SRL-W500/1600	SRL-W800/2000	SRL-W800/2500	SRL-W800*2/4000	SRL-Z1000/2500
Total cubage(L)	500/1600	800/2000	800/2500	1600/4000	1000/2500
Effective cubage(L)	330/1000	560/1400	600/1500	1120/2700	700/1750
Mixed speed(r/min)	430/860/70	330/660/55	330/660/60	350/700/65	350/700/50
Heating/cooling manner	Self-friction/water cooling
Mixed time(min)	8-12	8-12	8-12	8-12	8-12
Motor power(kw)	47/67/15	60/90/18.5	83/110/22	83/110*2/45	83/110/22
Discharge method	Pneumatic

we can custom make different size if customer has special requirement
