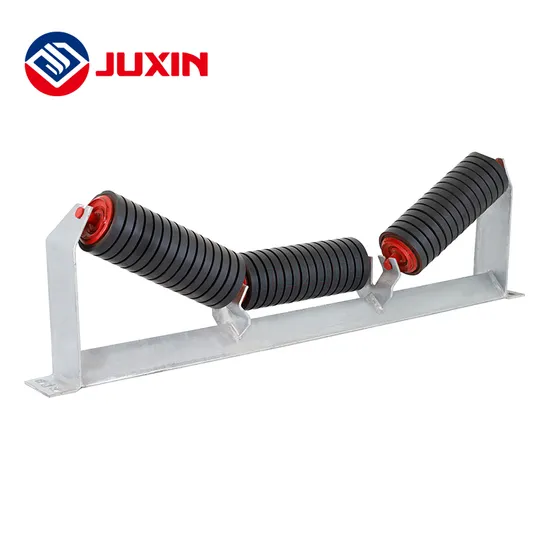

Carrying Roller for Conveyor

US$1.00 50 Pieces (MOQ)

Basic Info.

Structure
Ordinary Roller
Bearing Type
Double Sealed Bearing
Type
Grooved Conveyor Idler
Certificate
CE, ISO, BV, SGS, Ika, etc
Dia
60-219mm
Length
150-3500mm
Tube Material
S235jr
Shaft Material
Deep Drawn Steel C45(DIN)
Bearing
as Requested
Seal
Labyrinth Seal, Nylon 6
Waterproof and Dustproof Testing
Available
Lifetime
More Than 50000 Hours
Transport Package
Wooden Packing Case, Fumigation Before Loading
Specification
GB, ISO, Cema, DIN, JIS, etc
Trademark
Juxin
Origin
China
HS Code
8431390000
Production Capacity
5000PCS/Month

Product Description

Our conveyor rollers have been exported to more than 30 countries all over the world in past 34 years and we have professional engineers and all of them have rich experience in this field, we can design the goods independently.
Standard: GB, ISO, CEMA, DIN, JIS, etc
Production capacity: As usual 5000 pieces/ week, but urgent order is acceptable
Certificate: CE, ISO, BV, SGS, IKA, etc
Advantage:
The life time: More than 30000 hours
Samples for testing are available.
The more relaxed payment terms
Detailed conveyor roller idler feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Besides we can manufacture the rollers and idlers according to the buyers' requirements
Standard
External Diameter
Standard
Inner Diameter
Length scope ( mm) Bearings Type
(Min~Max)
mm In mm
89 3 1/3 60/50 170-3400 204
102 4 76 170-3400 204 205
108 4 1/4 89/76/60 170-3400 204 205
114 4 1/2 89/76 170-3400 204 205
127 5 89 170-3400 204 205
133 5 1/4 89/70/63.5 170-3400 204 205
140 5 1/2 89 170-3400 204 205
152 6 108/76 170-3400 204 205 206 305 306
159 6 1/4 108 170-3400 204 205 206 305 306
194 7 5/8 159/133 170-3400 205 206 207 305 306 307 308
