LED Outdoor Lighting Hot Sale Factory Price Customized LED Street Light 40W with Smart LED Driver Motion Sensor Die-Casting Aluminum CE CB RoHS 5050 Projector

US$48.00-55.00 1 Set (MOQ)

Basic Info.

Model NO.
508X-N
Lamp Body Material
Aluminum
Power
30-60W
Application
Square, Highway, Garden, Parking Lot, Street Airport Pathway Ubran
IP Rating
IP66
Certification
CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Input Voltage
100-240V
With Light Source
With Light Source
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
Type II Type III Type IV Type V
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector Aluminum
Driver
Meanwell Inventronics Moso Sosen Do
LED Type
5050 / 3030 /3535 LED Chip
Option
Microwave Sensor Zhaga NEMA
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
3G Vibration / 2g Vibration
Installtion
Horizontal Vertical Adjustable
Service
Dialux Light Simulation Projector
Application 2
Urban Public Lighting Area Lighting Airport Lighti
System Power
50W 60W 100W 120W 150W 200W 250W
Transport Package
Carton
Specification
469*193*74
Trademark
ZQ
Origin
China
HS Code
940542900
Production Capacity
2000000

Packaging & Delivery

Package Size
550.00cm * 260.00cm * 150.00cm
Package Gross Weight
5.000kg

Product Description

Product Description
Product Features

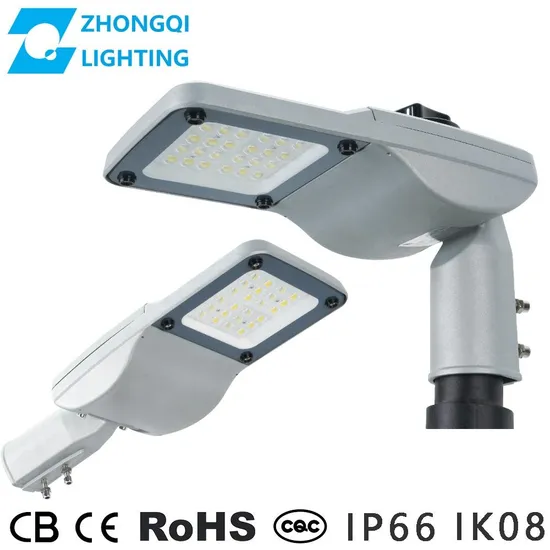

L508X for urban and street lighting of high architectural value
High pressure die casting housing, which has advantages of impact resistance and corrosion resistance.
Luminous flux can maximum 180 lumen per watt, Different CCT is available on customer request
High light transmittance lens available: TYPE II, TYPE III, TYPE IV, TYPE V
Tempered glass protect PC lens exposing from UV, moisture, dust environment, better lighting output effects
IP66 driver chamber structure, different configurations can be integrated with IOT Smart System for creating modern Smart Cities
Horizontal and vertical mounting options
Toolless operation design makes fixture easy to install and maintain
Product Parameters
TECHNICAL PARAMETERS
Item name Input voltage Freqency range Power Factor CRI CCT Lifetime Ta
Street light AC90-305V 50/60HZ 0.95 >70 2700-6500K >50000H -25ºC~55ºC
IP Grade IK LPW THD Dimming Color Mounting Pole diameter
IP66 IK08 100-150 ≤20% YES Customized Adjustable 48-60mm
Product Model Power(W) Premium LPW(lm/W) Standard LPW(lm/W) N.W.(kg) G.W.(kg) Product Size(mm) Packaging Size(mm)
ZQL-L508X 60 150 130 2.88 3.68 469*193*74 515*235*120
ZQL-L508X 80 150 130 2.88 3.68 519*193*74 565*235*120
ZQL-L508X 100 150 130 3.27 4.27 579*263*74 640*300*120
ZQL-L508X 120 150 130 3.39 4.39 579*263*74 640*300*120
ZQL-L508X 150 150 130 4.29 5.49 579*263*74 640*300*120
ZQL-L508X 180 150 130 4.33 5.53 682*280*76 720*300*120
ZQL-L508X 200 150 130 6.03 7.53 682*280*76 720*300*120
ZQL-L508X 240 150 130 6.20 7.70 682*280*76 720*300*120
Product Details
Product Applications
Company Profile
Packaging & Shipping
FAQ Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
