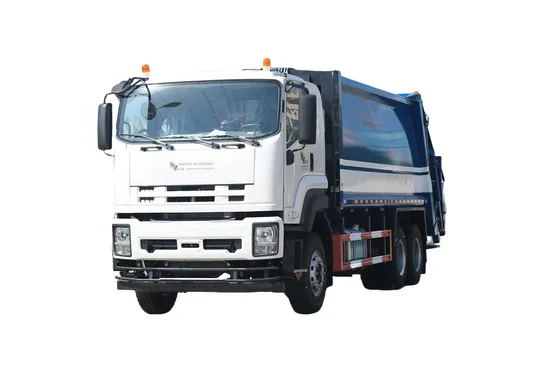

I Suzu Giga 10 Wheelers 460HP 22m3 22cbm Compactor Garbage Trucks for Philippines

Product Description

HUBEI FUYA VEHICLE CO.,LTD
I. Details of I SUZU GIGA 10 Wheelers 460HP 22m3 22cbm compactor garbage trucks for Philippines
(1) Functions:
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,
rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down
bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination,
the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
II. Technical data of I SUZU GIGA 10 Wheelers 460HP 22m3 22cbm compactor garbage trucks for Philippines

Main specification		Chassis brand	I-SUZU VC46 model
		Truck model	MT5250
		Overall size(L*W*H)	10050×2496×3400mm
		Compactor tank	22m3
		Loading capacity	20,000 kg
		Gross weight	25,000 kg
Chassis		Drive modle	6x4 left hand drive
		Cabin	VC46 ,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior
		Front axle	7ton loading capacity
		Rear axle	18ton loading capacity/ 2 axles
		Wheel Base	5100mm+1300mm
		Front/rear suspension	1032/2138mm
		Approach/departure angle	24/12(°)
		Transmission	FAST,12 gears frowards and 2 reverse.
		Tyre size & number	11.00R20. with one spare tyre
		Max speed	100km/h
Engine		Model	6UZ1-TCG40 or I SUZU 6UZ1-TCG51
		Engine Type	6 cylinders, Diesel,Vertical in-line, water-cooled,
		Horse power	460HP
		Displacement	9,839ml
		Emission	Euro 4 or Euro 5
Garbage tank		Volume of compartment	22m3
		Thickness	Side :4mm ; Bottom:5mm
		Material	Carbon steel,inner epoxy anticorrosive
		Function	Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket.

(1) More than 12 years professional manufacturer experience.(2) CCC ISO9001 agreement (3) Be designed according to your requirements (4) Small order can be accepted (5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, I SUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
III. Details of I SUZU GIGA 10 Wheelers 460HP 22m3 22cbm compactor garbage trucks for Philippines
Load operation is less than 30 seconds, unloading operation time is less than 45 seconds;
Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and
other kinds of loading mechanism.
Automatic control-- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed
in the cab, the other operation system button installed at the back of the upper body.
IV. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
V. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales
and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck ,
refrigerated truck, lpg and etc.
Welcome to contact with us for more info. We will offer you the best truck as we can .

---
