Plastic Crusher with Special Structure Design

Product Description

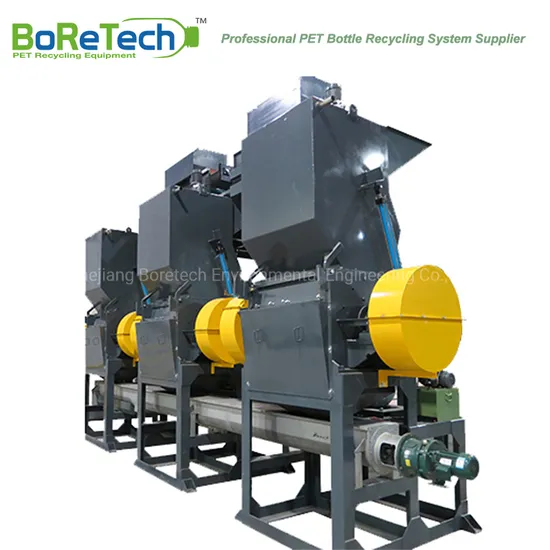

Plastic Crusher with Special Structure Design
Crushers with special structure design allow to add water in crushing process for the first step of friction washing;the water helps to reduce temperature inside the chamber of crusher and blade wearing,and most importantly,to reduce the amount of fine powder loss.
Reasonable process configuration can effectively ensure the removal of impurities and the continuity of the process,and at the same time,create the better condition for subsequent hot flotation.
Based on 20 years of experience in PET bottle recycling and crusher manufactur, we advance in the direction of low failure rate through mechanical structure design, material selection and manufacturing process technology.
Angle of cutting beyween rotary blade and fixed blade increases the efficiency of crushing and assure the moving direction of materials in the crushing room,reduce the friction and mechanical impact of the materials to the crusher chamber.
The strength of the shaft in the process of material choosing and heat treatment with special designed ,so that the shaft will not break. Crushing blade ,using special processing equipment to weld high wear-resistance steel and carbon steel, extends the service life of blade and decrease production cost while keeping the stability of productive quality. The design of blade adjustment frame to make it easier for exchanging blades.

Capacity (kg/h)	Power (kW)	Number of Rotary Blade (pc)	Number of Fixed Blade (pc)	Rotor Diameter (mm)	Size of Feeding Hopper (mm)
500-700	45	8	3	Ø500	500*500
1000-1200	55	16	6	Ø500	500*1000
1300-1500	75	16	6	Ø700	1000*600
1500-2000	90	16	6	Ø700	1200*600
2500-3000	200	36	8	Ø800	1200*920

Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
Crushing Section
Crushing unit grind PET bottles into flakes by relative mechanical motion of blades. BoReTech grinder adopts the wet crushing which achieves the washing effect through water added; on one hand, it can reduce the temperature due to generated friction and reduce the abrasion of the blades too; and moreover, it reduces the loss of the powder. BoReTech also provide sound-proof solution to protect operation labor from noise damage.
Project Show
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.

---
