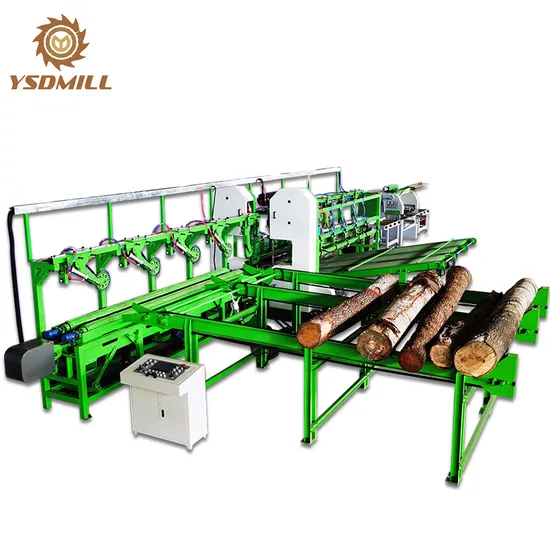

Twin Vertical Bandsaw Timber Wood Saw Machine Log Sawmill Cutting Line

Product Description

Product Description The smart log processing sawmill system is the newest design which can use in the forest or farm and DIY woodworking place. Twin vertical bandsaw machine remove two side of logs at same time. Cost-effective, versatile, designed for high performance, and built strong for long working life reliable service.
The twin vertical sawmill line combine with automatic log loading deck, vertical bandsaw, log turning conveyor, input and output chain system, side slab conveyor etc, touch screen control easy operation.

Model	YVT300	YVT500	YVT600
Max sawing dia	120-300mm	150-500mm	250-600mm
Saw wheel dia	710mm	800mm(32inch)	1000mm(40inch)
Max sawing length	1.5-4m(standard)	1.5-4m(standard)	1.5-4m(standard)
Saw blade width	75mm	100mm	125mm
Saw head power	18.5kw(25hp)	18.5kw or 22kw(30hp)	22kw or 30kw
Saw blade tension	Automatic	Automatic	Automatic
Conveyor motor	5.5kw	7.5kw	11kw
Width adjustment	Automatic	Automatic	Automatic
Cutting speed	5-15m/min	5-20m/min	5-20m/min
Control	Touch screen	Touch screen	Touch screen
Voltage	380V/50HZ/3phase	380V/50HZ/3phase	380V/50HZ/3phase
Weight	7500kgs	9500kgs	12500kgs

Log turning system with hydraulic power turning rollers, this machine is used to turn logs to a suitable cutting angle, the length of the machine can be customized according to your log specifications.
Double vertical band saw machine, precise cutting on both sides of logs at the same time, saw wheel diameter 800mm, saw blade width 3 inches, adjustable saw blade spacing.
Band saw blade automatic tensioning system, high working efficiency, easy to operate.
The inclined chain conveyor takes out the side panels after double vertical sawing, saving labor costs.
Laser measurements will help the operator check where the saw blade will cut.
The touch screen adopts PLC control system, all sawmill production line functions can be controlled in this panel, in this program you can set a variety of different cutting sizes, or adjust the cutting speed, the brand of electrical components is optional.
Log centering system to ensure the log is centered on the roller conveyor before entering the next cutting process.
Automatic Log loading Touch screen with joy stick for saw head control
Automatic log conveyor system Twin vertical bandsaw
Infrared measurement system Automatic fuel injection device
Packing & Delivery
Company Profile
FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturer.

Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.

Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.

Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.

Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.

Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.

---
