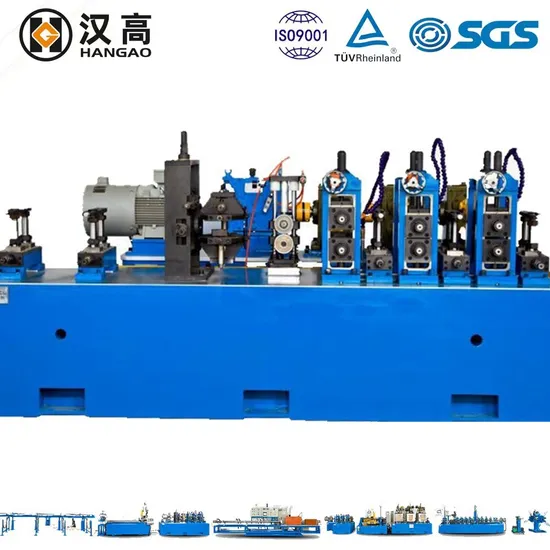

Sanitary Pipe Making Mill Line Stainless Steel Industrial Tube Welding Machine

Product Description

Rectangular Duct Machine Square Pipe Steel Profile Machine Line
Product Parameters

Type	Material	Welding type	O.D. (mm)	Thickness (mm)	Motor Power (KW)	Size(L*W*H)(m)
SZG-30	SST	TIG	6-16	0.4-1.5	5.5	Customized
SZG-40	SST	TIG	16-50.8	0.5-2.5	7.5	Customized
SZG-50	SST	TIG	25.4-76	0.5-3.0	11	Customized
SZG-60	SST	TIG	50.8-114	1.0-4.0	15	Customized
SZG-80	SST	TIG	89-168	1.0-5.0	18.5	Customized
SZG-100	SST	TIG	114-219	2.0-8.0	30	Customized
SZG-120	SST	TIG	168-325	3.0-10.0	37	Customized

Detailed Photos


1.Import stainless steel


2. Five roll leveling forming Piping
√ . Fast forming stainless tube
√ .High precision
3. Initial sizing section 4.Sizing straightening section
√ . Better determine the basic size and shape of welded pipe
√ . Stress reduction
√ . Round stainless steel pipe be more rounded shape
√ Achieve basic straightness
√ Improving the surface quality of welded pipe
√ Making the weld smooth
Automatic Roller Quickly Change Process
Working Procedure
Related Products

Our Advantages
Efficiency : 1. Using electromagnetic control system to correct the arc trajectory, improving working speed at least 25% higher and guaranteeing the welding seam quality. The highest speed could reach up to 12 m/min for the TIG welding with excellent welding seam.
2. It not only speeds up the efficiency, but also save the consumption and factory's room, with continuous, single tube and on-line heat processing. The minimun processed O.D could be 10-12.7mm.
Automation : Labor costs saving. One person could monitor 2 production lines in the meanwhile. Our self developed PLC control system could cordinate every section automatically. With HMI touching screen, you could use it easily.
Anti-corrossion : High quality rollers are made of material SKD11, with vacumm gas quenching. Hardness reaches up to 64-66, with CNC high precision processing.
Accuracy : Precise CNC processing could ensure the smooth surface with less scratch happenning when forming. Accurate size could controle the tolerance at the range of ±0.5-1.0 mm.
Visible design of micro adjusting device of roller's lifting, making roller replacement higher operability.
Usage
Hangao Machinery heat exchaner metal tube making machine SS pipe forming machine specializes in industrial usage, like HVAC pipe fittings, sanitary tubes, water pipes, valve pipe fittings, petrochemical pipes, chemical industry, medicine industry, wine-making industry, petroleum industry, food industry, automobile industry, paper making industry, air-condition making industry and so on. Products dealed with our tube mill could reach ASTM, DIN, ISO, GB and JIS standard.Our heat exchanger tubing stainless steel coil pipe production line use IGBT and digital control system. It could control the electricity consumption precisely, in order to lower the costs.
Company Profile

Guangdong Shunde Seko (Hangao)Machinery Co., Ltd. is a manufacturer, specializing in industrial stainless steel pipe making machine, on-line bright annealing machine, weld bead rolling machine, steel pipe polishing machine and other tube mill components. With more than 20-year experience, we integrates designa, development, manufacture, after-sale service and other supporting service. Many top manufacturers like Jiuli, Wujin, Sanhua, USA Plymouth, India Pennar and etc., have become our partner. Our items are exported to Dubai, Russia, India, Thailand, Pakistan, Vietnam and ect..
Hangao Partner

FAQ

1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications. 2.How about the warranty? All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance. 3.How to install your machine? Usually speaking, engineers will be sent to your factory to help to install and adjust the machines. We also have paper installation instructions and videos, teaching you till you command it. 4. Which export port you use? Any China ports. Commonly, we will use Shenzhen port. But it can be appointed as you like. 5. How about the payment terms and delivery time ? Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 40% deposit, 60% before shipment (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The machine delivery time is within 45-90 days. 6.Is your goods with ISO9001 or CE certificate ? Yes, all our goods has ISO certificate. All machines are high quality goods. 7.What is your nature of your company:dealer or factory ? We are manufacturer with a big factory ,warmly welcome to visit our factory and contact us. Please Contact Us- Get what you want

---
