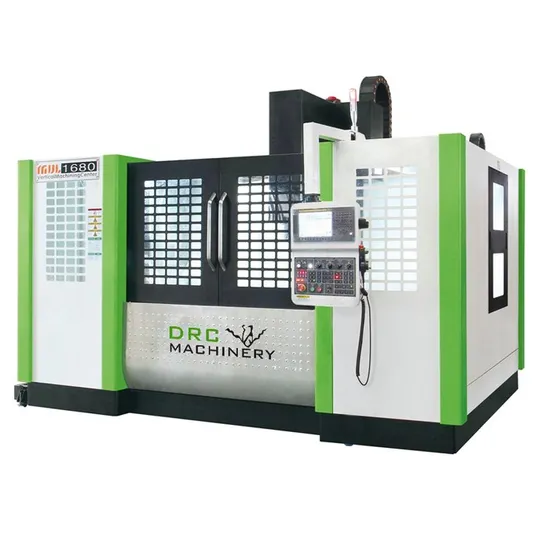

Vmc 1165 Vmc1270 Vmc1370 Cheap Price 5 Axis CNC Vertical Machining Center Fresadora Vmc Machine for Sale

US$58,000.00
1-2 Sets
US$56,000.00
3+ Sets

Basic Info.

Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
2 Axis CNC Machine Center
4 Axis Machine Center
CNC Milling Machine China
CNC Machining Center Price
3 Axis Machining Center
3 Axis CNC Machining Centre
CNC Milling Machine Centre
Vertical CNC Machining Centre
CNC 4 Axis Machine Center
Automatic CNC Milling Center
China Machining Center
Cheap Vertical Machine Center
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 3500x2700x2650mm
Trademark
DRC
Origin
China
Production Capacity
500

Product Description

vmc 1165 vmc1270 vmc1370 cheap price 5 axis cnc vertical machining center fresadora vmc machine for sale
VMC machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace, military, and hardware.
Model
 VMC 1160 (GSK system)
Travel parameters of 3 axis
X /Y/Zaxis travel
 1100/600/620mm
Spindle face to table distance
 120-720mm
Distance between spindle center and column guide surface
 675mm
Worktable parameters
Worktable size
 1200×600mm
Maximum load bearing of worktable
 1000kg
T Shot
 5×18×120mm
Feeding parameters
X/Y/Z axis rapid movement rate
 24/24/24m/min
Feed moving velocity X, Y, Z
 1-10m/min
Spindle parameters
Main shaft connection
 Belt
Spindle taper
 BT40-150
Range of spindle speed
 8000rpm
Spindle motor power
 (Alternating current servo)11kW
ATC paremeters
ATC capacity
 24qty
Maximum tool size
 Φ350/250mm/Φ150mm(tool from a distance)
Maximum tool weight
 8kg
Precision
PositionaI accuracy(JIS standard)
 ±0.008/300mm
Repeated positioning accuracy(JIS standard)
 ±0.005mm
Shape and weight
Machine size
 3100×2550×2900mm
Weight
 6800kg
