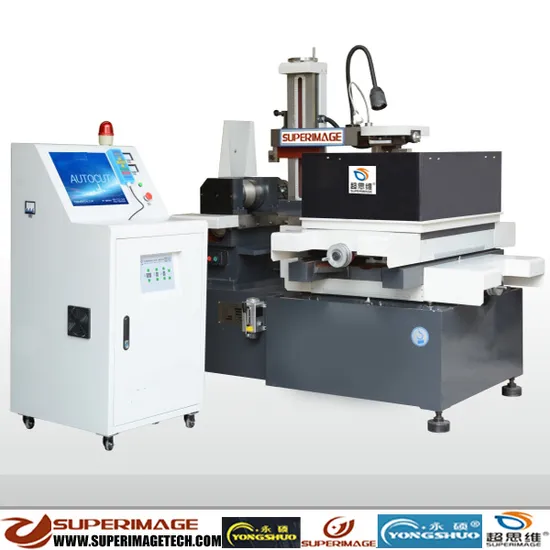

800mm*1000mm High Speed CNC Wire Cut EDM Wedm-Ysdk7780

Product Description

1. Products Name:
800mm*1000mm CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
High Speed CNC Wire Cut EDM
High Speed CNC EDM Wire Cut Machine
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
800mm*1000mm CNC WEDM
WORK TABLE 900*1260MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 900*1260MM
800mm*1000mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE
2. Basic Technical Data:

TECHNICAL DATA	WEDM-YSDK7780
CONTROL SYSTEM & AXIS QTY.	AUTOCUT, 4 AXIS
XY AXIS TRAVELING DISTANCE	800*1000MM
WORKTABLE SIZE	900*1260MM
MAX.LOADING WEIGHT OF WORKTABLE	1500KG
MOTOR DRIVING MODE	STEPPING MOTOR DRIVE
MACHINING SURFACE ROUGHNESS	Ra≤2.5UM
MACHINING PRECISION	0.015UM
MAX. CUTTING THICKNESS	800MM
MAX.CUTTING SLOPE/WORKPIECE THICKNESS	+30/100
MAX.CUTTING SPEED	≥12000MM2/HOUR
STABLE MACHINING SPEED	10000MM2/HOUR(2-3 TIMES THAN THAT OF ORDINARY)
SCREWS RUNNING SPEED	12MM
DIAMETER OF ELECTRODE WIRE	Φ0.1-0.25MM
MACHINE RUNNGING POWER	1.5KW
MAX.MACHINING CURRENT	8A
MACHINE SIZE	3000MM*2450MM*1967MM
MACHINE WEIGHT	4500KG
HARDWARE CONFIGURATION & INTERFACE	SCHNEIDER ELECTRIC,USB,LAN/RS232
OPERATION PANEL & LANGUAGE	ENGLISH,JAPAN,RUSSIA,ETC

3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.

---
