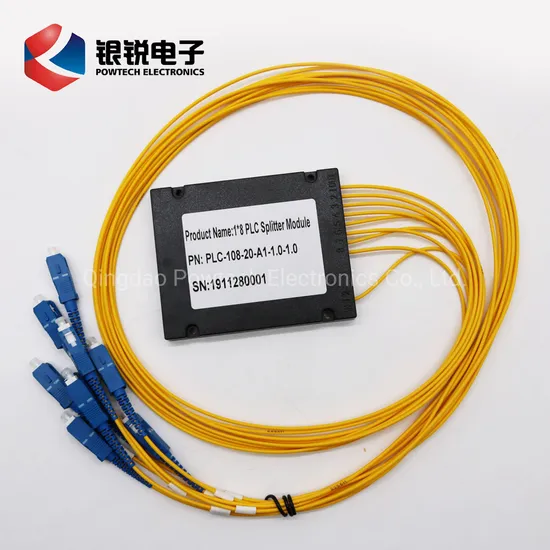

ABS Box Type Fiber Optic Cable Equipment PLC Splitter

Product Description

ABS box type fiber optic equipment PLC splitter
Introduction
PLC-Planar Lightwave Circuit Splitter is a kind of power splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.
Feature
Broadband Operation Wavelength
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Applications
Telecommunication sector
PON Syster
FTTH
CATV
Video Transmission Product Parameters Specification

Item	Parameter
Operating Wavelength(nm)	1260 ~ 1650
Type(1*N)	1*2	1*4	1*8	1*16	1*32	1*64
Max.Insertion Loss(dB)	3.9	7.2	10.3	13.5	16.8	20.3
Max.Uniformity(dB)	0.8	0.8	0.8	1.0	1.5	2.0
Min.Return Loss(dB)	55
Max.PDL(dB)	0.2	0.3	0.3	0.3	0.3	0.5
Type(2*N)	2*2	2*4	2*8	2*16	2*32	2*64
Max.Insertion Loss(dB)	4.2	7.5	10.6	13.9	17.2	20.8
Max.Uniformity(dB)	0.8	1.0	1.2	1.5	1.8	2.0
Min.Return Loss(dB)	55
Max.PDL(dB)	0.2	0.3	0.3	0.3	0.3	0.5
Fiber Type	ITU-T G657A1 , G657A2 and G.652D
Max.Temperature Stability(dB)	0.5( Typical 0.3 )
Operating Temperature(ºC)	-40 ~ +85
Storage Temperature(ºC)	-40 ~ +85

PLC Splitter Type and Packagin 1, Basic Plc Splitter(Bare ribbon type)
2. Mini Module Type PLC Splitter
3. Module Box Type
