Product Details
Product Description
Product Description
Explosion proof wet film humidifier
Product mod

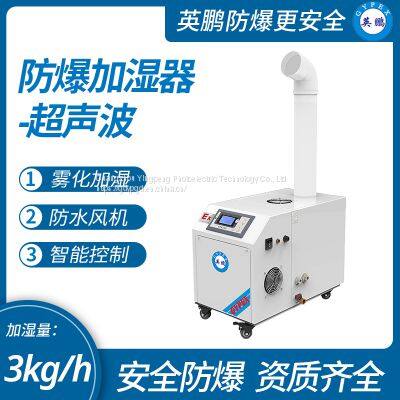

Ultrasonic explosion-proof humidifier 3kg
Product model
BAF-03
Power Supply
220V/50Hz
Humidification amount
3KG/H
Operating power
300W
Recommended area
0-50 ㎡
Water inlet method
Automatic water inlet
Atomized particles
1-5 μ m
control mode
Fully automatic control/humidity display
Installation method
Independent humidification/air conditioning pipes/PVC pipes
Humidity control range
30%~90%RH
Mist outlet
110 mm (one PVC pipe outlet)
Humidity control accuracy
± 3%
protective measures
Water shortage protection
Warranty Description
Complete machine for one year
The AF series explosion-proof humidifier is one of our company's explosion-proof HVAC series products, used for regulation in enclosed environments with flammable and explosive gases in Zone 1 and Zone 2. Our explosion-proof wet film humidifier has the advantages of safety, reliability, stability, and high degree of automation. In addition, our company manufactures explosion-proof ultrasonic humidifiers and explosion-proof electric humidifiers to meet the needs of different users.
Product Features
● Performance, designed and manufactured using explosion-proof technology, with a beautiful appearance and stable performance. The explosion-proof symbol is Exdemia II CT4, which has been inspected by the explosion-proof electrical supervision and inspection center and is safe and reliable.
Adopting filtration and electronic dust removal technology to remove particles as small as 0.01 micrometers
24-hour timed on/off selection
Equipped with fan operation mode setting function, capable of setting high-speed wind, low-speed wind, and fuzzy control
Suitable for hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4, classified as Class IIC in petroleum, chemical, aerospace, laboratory, storage, and other departments. The BAF series industrial grade integrated explosion-proof humidifier is a Class IIC explosion-proof humidification system manufactured using integrated explosion-proof technology according to industrial environmental requirements.
Most explosion-proof humidifiers use thermistor type temperature controllers (temperature sensors) for electronic temperature control, as their temperature sensing probes have a smaller resistance as the temperature increases and a larger resistance as the temperature decreases. By utilizing this feature, it is possible to start and stop the machine due to water shortage, thereby achieving circuit control.
The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits. After process manufacturing and explosion-proof treatment, the design and manufacturing of the product strictly follow relevant standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;
Voltage: 220V/50Hz;
Internal explosion-proof sign: Exdmib II-CT4.
Customized according to customer needs and drawings, we can provide customers with solution designs.
>>
