Tr4/Tr5 Metal Double Layer Tile Panel Roll Forming Machine

Product Description

Tr4/Tr5 Metal Double Layer Tile Panel Roll Forming Machine
Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc. 1. Component line1000 Roof Panel Cold Roll Forming Machine

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	mold pressing machine	set	1
6	Blade	set	1
7	Receiving table

Series	Details	Parameter
ProducT	Raw material	PPGI /PPGL
	Material thickness	0.25-0.8mm
	Product cutting length	Adjustable
	Coil ID	508 mm
	Coil width	1250 mm
	Coil weight	5T
Decoiler	Work type	hand type
	Structure	Steel channel for basic frame
	Loading capacity	5 Tons
	Coil inner diameter	550-610 mm(adjustable)
	Max coil width	1250 mm
Roll forming machine	Feeding device	Platform, the width is adjustable
	Roller stations	16 stages The distance between 2 stages is 443mm
	Roller shaft	Shaft material: 45# steel
		Shaft diameter: φ70 mm
	Roller	Roller material: 45# steel
			Roller spacer	Anti rusty treatment
	Work speed	25m/min
	Main structure	Middle plate weld with structure
	Motor power	5.5KW ,SHANGHAI LICHAO BRAND
	Transmission	1.0INCH CHAINS
	Machine basic frame	400# H steel welded with diagonal bracing inside
	Bearing	Chinese famous brand: Harbin
	PLC control system	Frequency brand	Delta (original)
PLC brand PLC		Delta (original)
Screen type		Touch screen also have button
Screen language		English / Chinese/Arabic
Low voltage apparatus		TAIWAN DELTA
Encoder		Omron
Function		Cutting to length, quantity and work speed control.
Hydraulic system	Work type	Hydraulic cutting
	Driving type	By pillar type cylinder
	Hydraulic motor power	4.0KW
	Cutter material	Cr12
	Cutting length tolerance	±1-3mm
Product collect table	Length	3m
	Width	1.3m
	Structure	Shaped steel welded

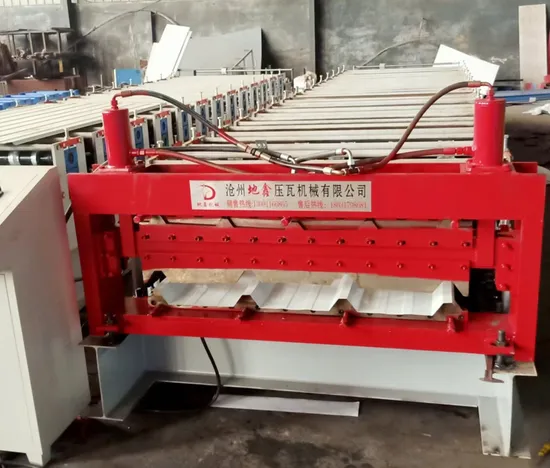

Some machine details photos for your reference
Product packaging
A. Need one 20 or 40 ft container, according to your final drawing.
B. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
C. Spare parts in carton box.
FAQ
1. Q: Are you a manufacturer?
A: Yes,we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands.
3. Q: What's the warranty for your machine?
A: We provide 2years guarantee and provide lifetime technical support.
4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system.
5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you.
8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service.
9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc.
10. Q: Any certification
A: Yes, we have CE SGS ISO certification.
