Agricultural Machinery New Price Tiansheng Machine Agricultural Machinery Gqn Series Rotary Tiller

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
-----The Drafting unit of Chinese standard for disc harrow and disc plough

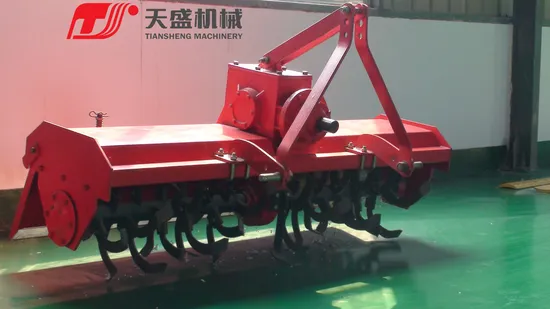

NAME:1GQN SERIES OF ROTARY TILLER
1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 15-160hp. We can't see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It is suited to dry land and paddy field. It can save time, labor and money etc.

Model	Unit	1GQN-100	1GQN-125	1GQN-140	1GQN-150	1GQN-160	1GQN-180	1GQN-200	1GQN-220	1GQN-250	1GQN-300
Matched Power	hp	12-15	18-20	20-25	25-30	30-40	50-55	55-75	60-80	75-80	80-120
Working Width	cm	100	125	140	150	160	180	200	220	250	300
Working Depth(Dry Land)	cm	12-16	12-16	12-16	12-16	12-16	12-18	12-18	12-18	12-18	12-18
Working Depth(Paddy Field)	cm	14-16	14-16	14-16	14-16	14-16	14-20	14-20	14-20	14-20	14-20
No. of Blades		18	26	30	34	38	42	46	50	58	70
Type of Blades		IT225	IT225	IT225	IT225	IT225	IT245	IT245	IT245	IT245	IT245
Overall Weight	kg	200	220	230	240	260	415	430	445	460	520
Dimension(L'W'H)	cm	900*1050*950	900*1350*1000	900*1500*100	900*1600*1000	900*1700*1000	1020*1900*1152	1020*2100*1152	1020*2300*1152	1020*2600*1152	1020*3100*1152
Linkage		Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted	Standard 3 Point Mounted

Company Profile
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.

---
