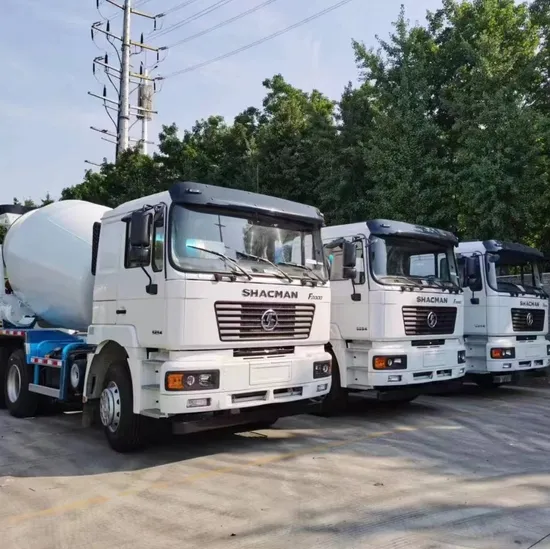

Heavy Duty Shacman F3000 Self Loading New Used 20cubic Mobile Construction Machinery Concrete Cement Mixture Machine Mixer Mixing Truck for Sale Price

Product Description

Product Description
Shacman truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets.
The cooling system is equipped with symmetrical left and right air chambers with advantages of shorter intercooler inlet pipe, reduced pipe drag resistance, tight piping layout and higher ground clearance.
430mm large friction clutch provides high transmission torque and efficiency.
Product Parameters

MODEL		SX5255GJBDR384
LHD OR RHD		Left Hand / Right Hand
Driving type		6×4
Curb weight		15600KG
Overall Dimension(LxWxH)		9000×2490×3900mm
Wheelbase		3775+1400mm
Max. Speed		80 km/h
Max. Grade ability		30%
Engine/	Brand	CUMMINS
	Model	ISME345-30
	Emission Standard	EURO2
	Rated output power	345HP
	Rated speed	1900rpm
	Max.Torque	1710N.m/1000~1200r/pm
	Displacement(L)	10.8L
Transmission	Brand	FAST
	Model	10JSD180 , manual , 10F/2R
Front axle	Model	MAN 9.5T
Rear axle	Model	16T MAN double reduce axle,
Clutch		¢430 diaphragm clutch
Steering		technology
Frame		850×300(8+7)
Suspension		multiple leaf springs front and rear/Four main spring + four bolts
Fuel tank		300L fuel tank
Wheels and tires		12.00R20
Cabin		F3000 D cab/ one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper
MIXER TANK		Concrete mixing tank volume: 10m3 with BW300 steel material, 4mm thickness. With Italy reduction, motor and pump system. AKB/EATON/PMP brands option.

Detailed Photos
The bumper is made of 5mm thick steel plate for armor like protection.
The headlamp is embedded within the steel plate bumper for easy maintenance.
The reinforced headlamp protective grid is matched to reduce the risk of headlamp being damaged by debris in bad road conditions.400L standard liter flat iron tank is fixed with three widened tension belts to effectively prevent tank shaking and reduce failure.
The lower part of the fuel tank is equipped with a 3mm steel plate protection guard, which can effectively protect the fuel tank from debris on the ground. The diameter of the U-bolt of the front leaf spring is upgraded to the thickest in the industry, up to 20 mm, which can improve the strength of the leaf spring bolt, reduce the fracture failure, and adapt to the bad working conditions.
Strengthen the rear leaf spring improves the vehicle carrying capacity, which is suitable forThe battery box protection has the function of anti-theft and is impact resistant, to prevent theft, flying stones and other debris from damaging the battery box.
Company Profile
As a member of Shacman our main products are F2000, F3000, H3000, M3000, X3000 brand seriestrucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixertrucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks,Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks,Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria,Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egyptand other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in SouthAmerica; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines Malaysia, Indonesia,Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
After Sales Service
1.Six months quality guarantee for three key parts, axles, engine, transmission or within 50000km,which comes the first.
2.Other spare part could be supplied by OEM at cost prices.
3.Regularly callback to know the vehicle's workingstatus.
3.Offer spare parts at factory cost and free, technical support during the whole life cycle ofthe truck and trailers
(say 10years);
Customer Feedback
TWO TRUCKS HEAD IN TANZANIA ONE TRUCK HEAD IN MALI ONE TRUCK WORK IN GHANA ONE TRUCK IN CONGO ONE LORRY TRUCK IN NIGERIA ONE TRUCK IN KENYA
FAQ
1.What is the delivery date?
- It usually takes 10 to 25 days of receiving the deposit.
2.Payment and mode of transportation?
- We accept T/T,
- Bulk, rolling, loading, land transportation,we will actively provide customers with cheaper transportation.
3. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 99% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing.
4.Can you satisfy my special requirement?
- Definitely! We can make the trailers or trucks based on your requirement.

---
