Atex Approved Earthing/Grounding/Bonding System for Tank Truck

Product Description

Product Description

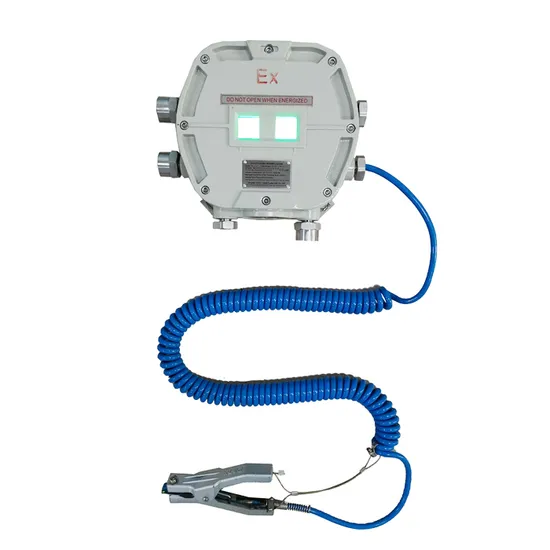

ATEX approved Earthing/Grounding/Bonding System
The ATEX approved "Overfill Protection and Earthing Systems" are designed for bottom loading of tank trucks, rail cars, etc. In the event of an overfill condition, the overfill sensor will send a signal through the output relay to the terminal automated loading system to shut down the loading operation. The systems provide overfill protection as well as grounding verification.
Product Parameters

Input Power:	85VAC to 250VAC 50Hz
Input Current:	<60mA
Output Signal:	On-Off signal
Monitoring Set Point:	10 ohms
Alarm:	Visible alarm
Spiral Cable:	Extendable to 8m (26ft.)
Output Safety Parameters:	Um:250VAC,Uo:21.42VDC,Io:149mA,Po:798mW,Co:1.19μF, Lo:6.4mH (for overfill sensor )
	Um:250VAC,Uo:14.28VDC,Io:96.2mA,Po:343mW,Co:4.28μF, Lo:15.4mH (for earthing senor)
Ambient Temperature:	-20ºC to +55ºC(-4ºF to +131ºF)
EU-Type Examination Certification No.:	Presafe 16 ATEX 8909X
QAN Certificate No.:	Presafe 16 ATEX 7744Q
Standard:	EN60079-0, EN60079-1, EN60079-11
Applicable Directive:	2014/34/EU

Composition

Features & Benefits

1. Static Protection Ground Monitoring Device is ATEX approved.
2. Module integrated design, easy to install and maintain.
3. Flameproof enclosure: Incorporating Intrinsically Safe Static Grounding Monitoring System. Vehicle static earthing system can be used outdoors for controller's degree of protection is IP65.
Working Status
Related Products
Certifications

Packaging & Shipping

Company Profile
Established in 1996, Qingdao Alptec Safety Equipment Co., Ltd specialises in the design, manufacture, and supply of high-quality Overfill Protection as well as Static Grounding Systems, Earthing Clamps, Reels and accessories for the chemical, petrochemical, oil and gas and process industries that transport, store, transfer and use flammable liquids, solvents or combustible liquids in hazardous areas.
Alptec is PetroChina's preferred brand and we have secured more than 50% of the market share in China. Internationally we began exporting in 2006 to Germany, Spain, USA, Canada, Australia &New Zealand, Korea, Singapore, Thailand, Vietnam, Mexico, Brazil, South-Africa, India, and many other countries.
Our Advantages
1. Sufficient Inventory;
2. We are the supplier of big companies;
3. We participate in international exhibitions every year and welcome customers to visit.
FAQ
Q1:Could you send me a sample before bulk order?
A:Of course, we can give you a free sample ,the sample fees will be returned after placing an order.
Q2:What is the payment method?
A:L/C T/T Western Union.
Q3:What is your supply capacity?
A:Our supply capacity is 200 sets/day.
Q4:When do you deliver it?
A:2 days after payment.
Q5:Is there MOQ for the ATEX approved ATEX approved Overfill/Overfilling Prevention/Protection & Earthing/Grounding/Bonding System?
A:10 sets.

---
