Product Details
Product Description
Product Description

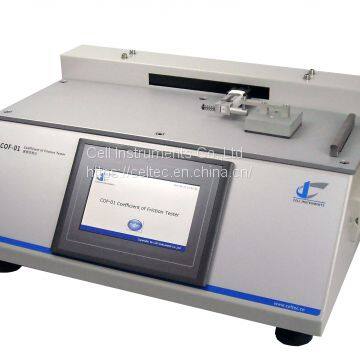

Film Friction(COF) Tester Principle
The two samples areplaced together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other.
Film Friction(COF) Tester Features
PLC control and touch screen operation
Real time display of test data, results and curves
Both the static and kinetic coefficient of friction can be measured
In accordance with multiple international standards
Test results calculation, analysis and curve superposition
RS232 output and professional software
Microprint of easy printing of test result
Film Friction(COF) Tester technical Specification
Load Cell
| 5N
|
Accuracy
| 0.5 F.S.
|
Stroke
| Max 150mm
|
Sled
| 200 g (Customization for other weight)
|
Test Speed
| 100mm/min (ISO), 150mm/min(ASTM)
|
Power
| AC 220V 50Hz ( can be changed to local requirement)
|
Dimensions
| 540mm(L)*380mm(W)*240mm(H)
|
Film Friction(COF) Tester Standards
ASTM D1894, ISO 8295,TAPPI T816, GB 10006
>>
