Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Certification
CE, ISO9001:2008
Video Outgoing-Inspection
Provided
Plastic Processed
PP, PC, ABS, PVC, HDPE, PA, HDPE/PP, ABS/PP, PE/PP
Motor
Servo Energy Saving Motor
Product Description
Product Parameters

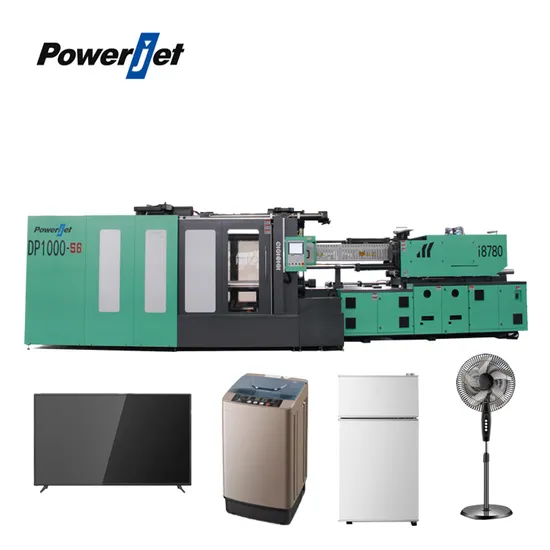

Machine Details
High Efficiency
Low Energy Consumption
The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.
The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.
Ultra-wide space of the mold clamping area, large core pulling space and easy operation.
The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
Application
DESCRIPTION
| UNIT
| DP1000-S6
|
CLAMPING UNIT
| Clamping force
| KN
| 10000
|
Opening stroke
| mm
| 2100/1300
|
Max.daylight
| mm
| 2600
|
|
Space between bars
| mm
| 1300*1100
|
Max.mold height
| mm
| 1300
|
Min.mold height
| mm
| 500
|
Ejector stroke
| mm
| 350
|
Ejector force
| KN
| 210
|
|
|
INJECTION UNIT
| Screw diameter
| mm
| 100
|
Screw L/D Ratio
| L/D
| 24.2
|
Injection Pressure
| MPa
| 194
|
Shot volume
| cm3
| 4516
|
Shot weight (ps)
| g
| 4109
|
oz
| 145
|
Injection rate
| g/s
| 1311
|
Plasticizing capacity
| g/s
| 108
|
Screw stroke
| mm
| 620
|
Screw speed
| rpm
| 115
|
POWER UNIT
| Hydraulic system Pressure
| MPa
| 17.5
|
Pump motor power
| KW
| 52+60
|
Heater power
| KW
| 61
|
GENERAL
| Oil tank capacity
| L
| 1250
|
Machine weight
| T
| 44
|
Machine dimensions (L*W*H)
| m
| 9.5*3.4*2.9
|
Sales & Service Network
We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers
FAQ
Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
>>
