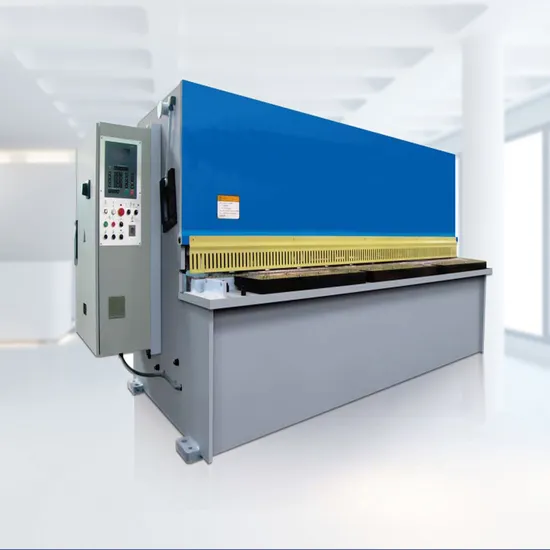

Price 4/6/8/10/12/16/20 mm Automatic High-Precision CNC Hydraulic Swing Beam Guillotine Plate Shearing Machine for Metal Sheet Cutting

Product Description

Product Description
Affordable Price 4/6/8/10/12/16/20 mm Automatic High-Precision CNC Hydraulic Swing Beam Guillotine Plate Shearing Machine with CE SGS ISO Certification
Frame Rigidity Enhancement TreatmentWelcome to Nadun Machinery Manufacture Co., Ltd. Our 20mm shearing machine is a high-quality mechanical equipment designed for precision cutting of metal sheets up to 20mm thick. With advanced control systems and high-strength cutting blades, it provides exceptional accuracy and efficiency for various industries. Trust Nadun Machinery for innovative solutions to your manufacturing needs.Detailed Photos
1.The whole machine is welded with steel plates and driven by hydraulic system with accumulator return, making it easy to operate, reliable in performance, and aesthetically pleasing. The machine comes with a digital control system as a standard feature.
2.The blade gap adjustment is indicated by a signboard, allowing for easy and quick adjustment. There are also light alignment devices and cutting stroke control devices, which make adjustments convenient and fast.
3.The worktable is equipped with rolling material support balls to reduce scratching on the sheet metal and frictional resistance.
SNC-21 is mainly designed for controlling the pendulum shearing machine. It provides automatic positioning control for the backgauge position of the pendulum shearing machine with a regular motor, and automatically controls the single/continuous cutting action of the shearing machine according to the input signal requirements. The parameter selection can be set to single-sided or double-sided positioning mode, and the single-sided positioning mode can effectively eliminate the backlash of the fuse rod transmission.
The system has a soft limit function and power-off position memory function. The display scaling factor can be set based on the lead of the screw and the transmission ratio. The display scaling factor can also be automatically calculated by the CNC system through the digital operation function, which is very convenient to operate.
It also has a multi-step programming function to avoid interference between the backgauge device and the workpiece, reducing wear. The system is equipped with password protection.
Product Parameters

Model	Cutting Thickness	Cutting Length	Cutting Angel	Material Strength	Stopper Adjust Range	Stroke Times	Motor power	Dimension
TYPE	(mm)	(mm)	(°)	(KN/CM)	(mm)	(times/minute)	(kw)	LxWxH(mm)
4×2500	4	2500	1°30'	≤450	20-500	16	5.5	3040×1550x1550
4×3200	4	3200	1°30'	≤450	20-500	13	5.5	3840x1550x1550
4x4000	4	4000	1°30'	≤450	20-600	10	5.5	4600×1700x1700
4x6000	4	6000	1°30'	≤450	20-800	5	7.5	6460x2100x3200
6×2500	6	2500	1°30'	≤450	20-500	15	7.5	3040x1710x1620
6×3200	6	3200	1°30'	≤450	20-500	12	7.5	3840×1710×1620
6×4000	6	4000	1°30'	≤450	20-600	9	7.5	4620x1850x1700
6x5000	6	5000	1°30'	≤450	20-600	8	7.5	5410×1710×1620
6×6000	6	6000	1°30'	≤450	20-800	5	11	6480×2100×2300
8×2500	8	2500	1°30'	≤450	20-500	11	7.5	3040x1700x1700
8×3200	8	3200	1°30'	≤450	20-500	8	7.5	3860x1700x1700
8x4000	8	4000	1°30'	≤450	20-600	8	7.5	4640x1700v1700
8x5000	8	5000	1°30'	≤450	20-600	8	7.5	5400x2400×2000
8x6000	8	6000	1°30'	≤450	20-800	8	11	6480×2100×2350
10×2500	10	2500	1°30'	≤450	20-500	10	11	3040x1800x1700
10x3200	10	3200	1°30'	≤450	20-500	10	11	3860×2000x1700
10x4000	10	4000	1°30'	≤450	20-600	10	11	4650x2100×2000
10x6000	10	6000	1°30'	≤450	20-800	10	15	6500×2100×2300
12×2500	12	2500	2°	≤450	20-600	12	18.5	3140×2050×2000
12×3200	12	3200	2°	≤450	20-600	10	18.5	3880×2150×2000
12×4000	12	4000	2°	≤450	20-600	10	18.5	4680×2150×2100
12x5000	12	5000	2°	≤450	20-600	6	18.5	3245x1900x1900
12x6000	12	6000	2°	≤450	20-1000	5	18.5	6900×2600×2700
16×2500	16	2500	2°30'	≤450	20-600	10	18.5	3140x2150x2000
16×3200	16	3200	2°30'	≤450	20-600	10	18.5	3880×2150×2000
16×4000	16	4000	2°30'	≤450	20-800	10	18.5	4650x2150×2200
16×5000	16	5000	2°	≤450	20-1000	6	18.5	5900×2600×2700
16×6000	16	6000	2°	≤450	20-1000	5	22	6900x2700×2700
20×2500	20	2500	3°	≤450	20-800	8	22	3440×2300x2500
20x3200	20	3200	3°	≤450	20-800	8	22	4150x2350×2700
20×4000	20	4000	3°	≤450	20-1000	5	22	4850x2600×2400
20×6000	20	6000	3°	≤450	20-1000	4	22	6700x3000x3000
25×2500	25	2500	3°	≤450	20-1000	8	37	3200×2700×2900
25×3200	25	3200	3°	≤450	20-1000	5	37	4200×2400x2500
30×2500	30	2500	3°	≤450	20-1000	4	37	3300×2900x3000
30×3200	30	3200	3°30'	≤450	20-1000	4	40	4200×2500×2600
40×2500	40	2500	4°	≤450	20-1000	3	75	3200×3300×3200
40×3200	40	3200	4°	≤450	20-1000	3	90	4300x3300×3000

Packaging & Shipping
Internal plastic moisture-proof anti-rust packaging,External plywood packaging,Exclusive container transport.
Delivery Time:10-40 days after order.
Company Profile
Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.
Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.
At Nadun Machinery Manufacture Co., Ltd., we take pride in our commitment to providing customers with exceptional products and services. We have strict quality control procedures in place to ensure that each product meets or exceeds our customers' expectations. Furthermore, we offer customized solutions to meet specific customer requirements.
We believe that our success is closely tied to the success of our customers. For this reason, we work hard to build strong relationships with our customers and offer them the support and guidance they need to achieve their goals.
If you are interested in learning more about our products or services, please do not hesitate to contact us. We look forward to the opportunity to work with you and provide you with the best solutions for your needs.
Customer Visit
Our customers come from all around the world.
Customers from Mongolia
Customers from Russia
Customers from Algeria
Customers from Indonesia
Customers from Spain
We provide services to customers from all around the world.FAQ
Q1: How can you get the after-service?
A: We provide one year guarantee.
We will send you the spare parts if the problems caused by us.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure, welcome to inspect our factory.
Our factory address: No219 Xingye Road Tengzhou City Shandong Province
We can pick you up in the Tengzhou station
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory , export proportion 50~60%.
Q4:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime.
3. Trade Assurance is available.

---
