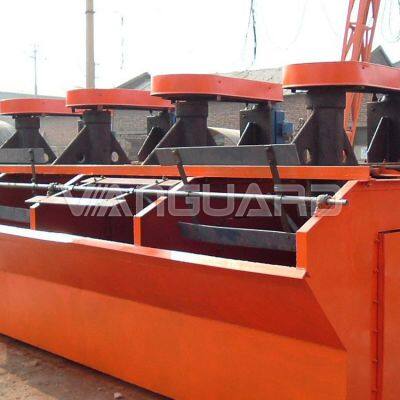

This equipment is the main equipment for sorting operations in the concentrator, and is used for roughing, concentration, scavenging, and reverse floatation. Mechanical stirring type flotation machines are divided into XJ type (A type), SF type, JF type, KYF/XCF inflatable type, etc., which is widely used in mineral separation operations in the beneficiation process of metal, nonmetal, rare metal, coal preparation and other industrial fields.
Performance Characteristics:
1. Large air suction volume, low power consumption.
2.Each cell with air suction, slurrysuction, flotation separation and flotation separation is easy to form flotation circle without any other accessory equipment, which is flexible to change process flow.
3. Backward type Impeller with upper and lower leaves, the upper blade generates upper circulation the lower blade generates lower
circulation.
4. Mechanical stirring, self- air suction, self-slurry suction.
5. Optimistic structure design & Excellent performance
WORKING PRINCIPLE
The flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device.When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. Enough air is sucked to mix slurry, and he mixed mineral slurry is mingled with additive at the same time. Mineral sticks on the bubble completely and floats on the surface of slurry to form mineralized bubbles.The useful bubble is scraped out by adjusting flashboard height and controlling the liquid surface.
PRODUCT PARAMETERS
Type
| Model
| Effective
volume
(m3)
| Capacity
(t/h)
| Diameter
of impeller
(mm)
| Motor power
for
agitation
(kw)
| Motor power
for scraper
(kw)
| Weight of
single
tank
(kg)
| Single Tank Size(mm)
|
XJ Type Flotation Machine
| XJ-0.13
| 0.13
| 0.05-0.16
| 200
| 1.5
| 0.55
| 1272
| 1120×1140
|
XJ-0.23
| 0.23
| 0.12-0.28
| 250
| 1.5
| 0.55
| 1558
| 1190×1238
|
XJ-0.35
| 0.35
| 0.15-0.5
| 300
| 2.2
| 0.55
| 1720
| 1350×1327
|
XJ-0.62
| 0.62
| 0.3-0.9
| 350
| 3
| 1.1
| 3041
| 1535×1760
|
XJ-1.1
| 1.1
| 0.6-1.6
| 500
| 5.5
| 1.1
| 5204
| 1970×2088
|
XJ-2.8
| 2.8
| 1.5-3.5
| 600
| 11
| 1.1
| 9295
| 2450×2295
|
XJ-5.8
| 5.8
| 5—7
| 750
| 22
| 1.5
| 13597
| 3250×2485
|
SF Type Flotation Machine
| SF-0.37
| 0.37
| 0.2-0.4
| 300
| 2.2
| 0.75
| 445
| 700×700×750
|
SF-0.7
| 0.7
| 0.3-1.0
| 350
| 3
| 0.75
| 600
| 900×1100×950
|
SF1.0
| 1
| 0.45-1.1
| 400
| 5.5
| 0.75
| 978
| 1000×1000×1000
|
SF-1.2
| 1.2
| 0.6-1.6
| 450
| 5.5
| 0.75
| 1240
| 1050×1050×1050
|
SF2.0
| 2
| 1.5-3.0
| 550
| 7.5
| 1.1
| 1879
| 1400×1400×1150
|
SF-2.8
| 2.8
| 1.5-3.5
| 550
| 11
| 1.1
| 2242
| 1600×1600×1150
|
SF-4.0
| 4
| 2.0-4.0
| 650
| 15
| 1.5
| 2660
| 1900×2000×1200
|
SF-8.0
| 8
| 4.0-8.0
| 760
| 30
| 1.5
| 4043
| 2250×2850×1400
|
JJF Type Flotation Machine
| JJF-4
| 4
| 2.0-4.0
| 410
| 15
| 1.5
| 2303
| 1600×2150×1250
|
JJF-5
| 5
| 2.0-6.0
| 410
| 15
| 1.5
| 2416
| 1120×1156
|
JJF-8
| 8
| 4.0-12.0
| 540
| 22
| 2.2
| 4507
| 2200×2900×1400
|
JJF-10
| 10
| 5.0-10.0
| 540
| 22
| 2.2
| 4820
| 2200×2900×1700
|
JJF-16
| 16
| 5-16
| 700
| 37
| 2.2
| 7657
| 2850×3800×1700
|
JJF-20
| 20
| 5-20
| 770
| 45
| 2.2
| 8505
| 2850×3800×2000
|
CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
