Factory Price Carbol Oil Cream Disperser Emulsify Homogenizer Silverson High Shear Mixer

Product Description

LENO high shear mixer is a type of industrial mixing equipment used to blend, disperse, emulsify, or homogenize materials in various industries such as pharmaceuticals, food and beverage, cosmetics, chemicals, and more. It is designed to operate at high speeds and generate intense mechanical forces to break down particles and create a uniform mixture.
The high shear mixer typically consists of a rotor (rotating element) and a stator (stationary element) arranged in close proximity. As the rotor rotates at high speeds, it creates a strong mechanical shear force by passing through the narrow gap between the rotor and stator. This shear force leads to the intense turbulence and localized high velocity that helps in achieving thorough mixing and particle size reduction. Applications of high shear mixers include: Emulsification: Breaking down immiscible liquids into stable emulsions, such as oil and water. Dispersion: Mixing solid particles into liquids to form suspensions or solutions. Homogenization: Achieving uniform particle distribution and consistency in products. Dissolution: Mixing and dissolving solid substances, such as powders, into liquids. Deagglomeration: Breaking apart aggregates or agglomerates to create a finer product. Particle size reduction: Reducing particle size to achieve specific product characteristics. There are various designs and configurations of high shear mixers, including batch and inline models. Some high shear mixers operate at fixed speeds, while others offer adjustable speed settings to control the intensity of shear forces. It's important to select the appropriate high shear mixer based on the specific requirements of the materials being processed and the desired outcome. Product Description

Material	SS304 or SS316L
Capacity	0-10T (Customized)
Tank inside pressure	Normal
Viscosity	1-1000000pas
Rotors teeth	strip type round type etc
Temperature	0-100 celsius degree
Installation	Movebale or Fixed or Lifting
Connection	Flange at the top of the tank
Motor type	Normal	Ex-proof	inverter
Speed	0-3400RPM
RTS Default Specification	LNP-100 SUS304 (If you need other specifications, please contact us first. Thank you.)

Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc. Product Parameters

Model	D	D1	P	L	M
LNP-90	80	140	200	350	165
LNP-100	88	145	200	450	165
LNP-120	120	180	250	750	215
LNP-140	140	210	300	750	265
LNP-160	160	230	350	900	300
LNP-180	180	260	350	900	300
LNP-200	200	270	350	1250	300
LNP-220	240	320	400	1400	350
LNP-240	260	340	400	1600	350

Model	Handing capacity (L)	Speed(RPM)	Length (mm)	power(KW)
LNP-80	10-40	2900/3400	350	1.1
LNP-90	10-50	2900/3400	350	1.5
LNP-100	50-100	2900/3400	450	2.2
LNP-120	100-200	2900/3400	750	3
LNP-120A	100-300	2900/3400	750	4
LNP-140	200-600	2900/3400	900	5.5
LNP-140A	200-800	2900/3400	900	7.5
LNP-160	500-1500	2900/3400	1250	11
LNP-180	600-2000	2900/3400	1400	18.5
LNP-200	8000-2500	1450/1700	1600	22
LNP-220	1000-3500	1450/1700	1600	30
LNP-240	1500-5000	1450/1700	1800	45
LNP-270	2000-8000	1450/1700	1800	55
LNP-290	3000-10000	1450/1700	2000	75
We can customize the equipment according to customer requirements.

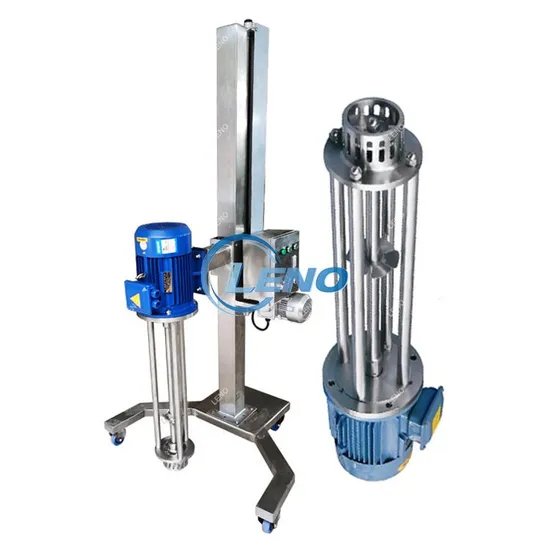

Product Image High shear mixer Stator and rotors 2.2KW high shear mixer mixer showing
4.0Kw high shear mixer with Atex motor 7.5KW high shear mixer with 1000mm Long
18.5KW high shear mixer with support 11KW dispersing mixer
LAB Small lifting high shear mixer Small mini 1.5kw high shear mixer7.5 KW bottom mixer with double flushed seal 4.0Kw bottom high speed mixer with seal High shear mixer with manual lifting design High shear mixer with electrical lifting design
Dispering mixer with pneumatic lifting design Paddle mixer with electrical lifting designPTFE coating paddle mixer with lifting design Movable tank with electrical lifting design Dispering mixer with electrical lifting design Paddle mixer with inverter speed and lifting design
Recommend Related Products
Company Profile
Logistics information

FAQ

1.	Are you trade or manufacturer?
	We are a factory with an international sales company specialized in support for global distributors.
2.	Can you provide instant technical consulting services?
	We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
3.	What is the payment terms?
	We accept Made in China Trade Assurance Order, also can T/T and L/C.
4.	How to choose the shipment way?
	It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
5.	How about the after-sales service?
	Ast after-sales support. Our products have a one-year warranty and free permanent consulting services.
6.	what can you buy from us?
	Stainless steel tank, mixing equipment, sanitary pump, distillation equipment, Vacuum Concentrator

---
