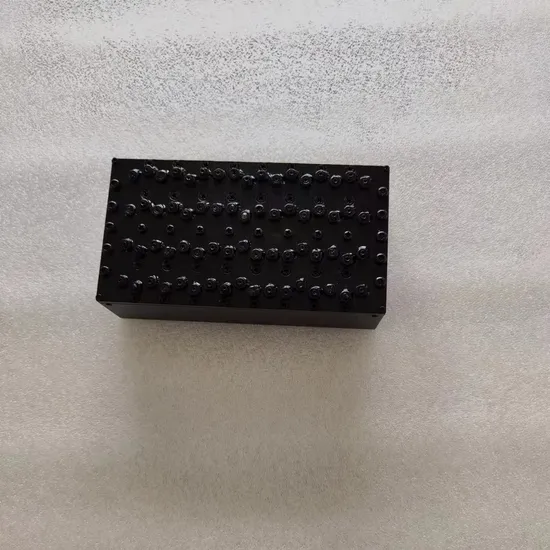

RF Cavity with SMA Connection 8-13.25GHz Bandpass Filter

Product Description

Product Description
RF 8-13.25GHz Bandpass Filter

Pass Band Frequency Range(GHz)	8-13.25
Stop Band Frequency Range(GHz)	16-26.5
Pass Band Insertion Loss (dB)	≤1.5
Stop Band Rejection(dB)	≥70
Pass Band VSWR/Return Loss (dB)	≤1.8
Power Rating(W)	2
In/Out Impedance	50Ω
In/Out Connector	SMA-Female
Surface Finish	Black
Operating Temperature Range	0-+55ºC
Net Weight(kg)	0.07
Dimensions(mm)	67.6*21*9

Company Profile
Nanjing Xibo Communication Technology Co., Ltd. was founded in 2015, the main products of Xibo Communication are: low-pass filter, high-pass filter, band-pass filter, band-stop filter, duplexer, combiner, and all kinds of loader, attenuator, power divider coupler and other microwave passive components, the structure of the form of LC, coaxial cavity, waveguide, microstrip, spiral or a mixture of them!
The company has a variety of R & D and production equipment, high and low temperature alternating hot and humid chambers and aging test chambers, 50G, 40G.18G, 8.5G, 3G vector network analyzers, passive intermodulation test system a set of (covering 700M/800/900M/1800M/2100M/2600M), with a monthly production of more than 10,000 microwave passive components capacity.
Packaging & Shipping
Port: ShangHai/NingBo/GuangZhou/TianJin
FAQ
Q&A:
Q: Could you supply a sample for me to test first ?
A: Yes, we can supply the sample first, however, the customer should bear the cost. Q. What should I do if I don't know about frequency in my country?
A: Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to
your problems.

Q:What is your payment terms?
A:We accept the T/T, Western Union, L/C and so on.
Q:When can you arrange the shipment after I have placed an order?
A: We can arrange shipment within 30days. If in peak season, usually we can arrange the shipment
45days.
Q: What is the MOQ?
A: Usually, it is serious requirement. However, it depends on different products.
Q: Can you accept Customized?
A: OEM and ODM are welcomed. We can customize the brand logo, colors, and frequencies.

---
