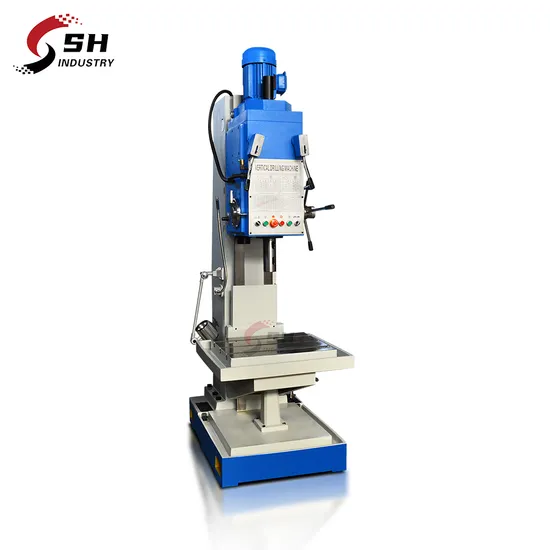

Universal Vertical Drill Machine Z5132 High Quality Deep Hole Drilling Machine

Product Description

Universal Vertical Drill Machine Z5132 High Quality Deep Hole Drilling Machine
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Z5132
Max drilling dia	32mm
Max feed resistance	12000N
Max. spindle allowable torque	200N.m
Spindle taper	Morse No. 4
Distance from spindle axis to column guideway	280mm
Spindle travel	200mm
Spindle box travel	200mm
Spindle speed	50~2000r/min (9)
The amount of feed(mm/rev)	0.056-1.80mm/r (9)
Working table stroke	310mm
Working table surface size	400×550mm
Distance from spindle nose to table surface	710mm
Main motor power	2.2kw
Cooling pump flow	25L/min
Overall dimension	980*807*2302mm
N/W	1250kg

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
