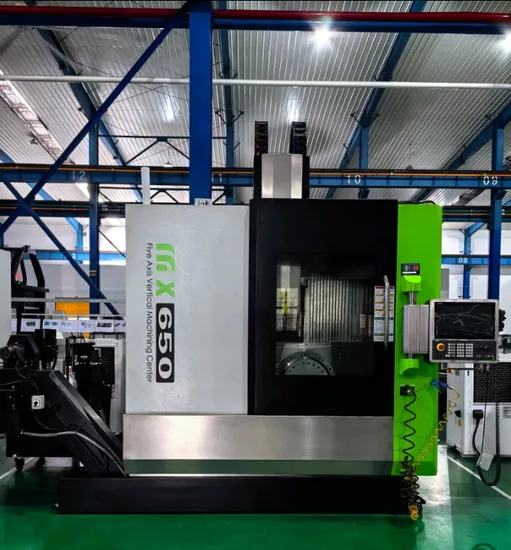

High Speed 5 Axis Vertical Machine Center Mx650 Fully Automatic CNC Vertical Machining Center

Product Description

MX650 High Speed 5 axis vertical machine center for aluminum cast forge parts cnc milling machining
MX650 5 Axis cnc vertical metal milling machining center price
1. 5-axis linkage, full closed-loop control, suitable for complex surface machining of precision molds.
2. With forward cantilever and longitudinal cradle layout, the straight spindle is separated from the processing area to obtain the best dynamic performance and convenient operating space.
3. B and C axis are driven by precision worm gear transmission, and Heidenhain circular grating is used to improve accuracy retention.
4. The worktable is equipped with tailstock unit, which can keep high precision under full load.
5. The machine has high torque and good quick response characteristics, which is suitable for automobile, mould, aerospace, industry, hardware and other mechanical processing fields.
Product Parameters

Model	Unit	MX650
Worktable
Table size	mm	600
Max. load on worktable	kg	350
T-slot	mm	5-14*100
Travel
X-axis	mm	650
Y-axis	mm	550
Z-axis	mm	500
B-axis		-40°/+110°
C-axis		360°
Spindle nose to worktable center	mm	140-640
Spindle
Spindle taper		BT40
Rotating spindle speed	rpm	15000
Spindle motor	kw	11
Feed speed
Fast feed speed	m/min	36
Maximum rotation speed of B-xis	rpm	25
Maximum rotation speed of C-xis	rpm	25
Tool magazine
Capacity of tool magazine		40
Max. tool weight	kg	8
Max. tool length	mm	200
Max. tool diameter	mm	75
Tool change time	sec	2.5
Precision
Positioning accuracy(X/Y/Z)	mm	0.008
Repeated Positioning accuracy(X/Y/Z)	mm	0.005
Positioning accuracy(B/C)	sec	5
Repeated Positioning accuracy(B/C)	sec	2
others
Air supply pressure	bar	6-8
Air pressure flux	L/min	280
Weight	T	10.5
Floor area (length*width*height)	mm	4520*3960*3340

---
