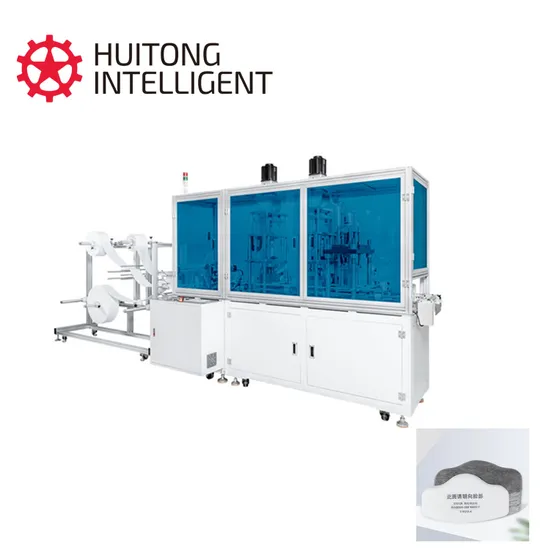

Automatic High Speed 5744cn Folding Cotton Filter Machine

Product Description

Automatic Filter Cotton Punching Cuting Machine
Automatic Filter Cotton Punching Cuting Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency "Fully automatic filter cotton machine", From raw material delivery, logo printing, ultrasonic welding, finished product punching to finished product delivery, it is a one-stop fully automatic production. Compared with the traditional manual feeding, waste processing, and cutting, 5-6 labors can be saved, and the production efficiency is greatly improved.
Ready to embark on a lucrative venture in Filter Cotton Punching Cuting production? Discover the essential machinery you need to succeed!
Features:
1.This Buckle Cotton Filer making machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2.The whole line is fully automated, with a production speed of 25-40pcs/min , and can be produced without shutdown during feeding.
3.The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
4.The equipment size is 5100×1300×2200 mm
5.Each module can be used separately, free combination
6.the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
7.PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
8.Adopt imported servo motor, imported pneumatic components, high precision.
9.The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
10.The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.
Technical Parameters :

Model No.	HT-KF05A
Speed	25-40 pcs/min
Output Power	5kw
Power Supply	Ac220v 50/60hz
Air Pressure	0.6-0.8 mpa
Weight	1200 kg
Dimensions	5400× 5200× 2000 mm

Detailed Photos

Company Profile

Exchange of foreign friends:
CERTIFICATE:

---
