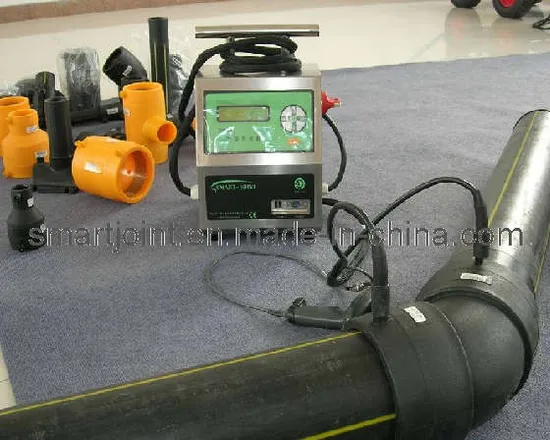

PE Pipe Electrofusion Machine 20-1400mm

Product Description

DH-II Electro-fusion machine adopts scm (single chip) as the main controller, controlled by voltage adjustment which can output precise voltage. It adopts Chinese and English two languages panel. Matched with laser scanning tool to read the barcode information, and execute the fusion according to the barcode. It can check the operation fault and reminds the operator by itself. 1000 PCS data memeory capacity, quick data dowload and printing easy for management and tracking after welding

ITEM NO.	DH-II
INPUT VOLTAGE	220v± 15%
OUTPUT VOLTAGE	10-50v
ISO BARCODE	24 digits Standard Electro-fusion
WELDING RANGE	20mm-400mm
PIN DIAMETER	4.0 mm4.7mm
POWER SUPPLY	3200w-90A
WORKING TEM.	-10+45degree
IP GRADE	IP54
MEMERORY	1000PCS
DATA DOWNLOAD	USB
PRINTER INTERFACE	Serial interface DB9P
SIZE(L× W× H)	295× 212× 416mm
WEIGHT	21kg
WARRANTY	1 YEAR

---
