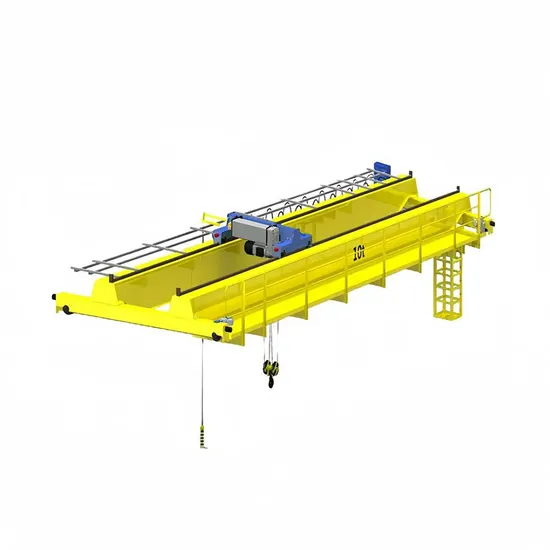

Qd Type 16/3.2t Double Beam/Girder Bridge/Overhead Crane

Product Description

Product descriptions from the supplier
Overview
Product Description
QD model overhead crane with hook is mainly used in inside workshop. it is divided into two workingclasses: A5 and A6 according to the use grade and load-up condition.There are three kinds of method for entering the platform of cab from the side, from the end and from thetop.The cab can be either fixed at the left end or at the right end.Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the oppo.* Capacity: 5-800/150ton* Span length: 10.5-31.5m* Lifting height: 3-50m* Work duty: A5, A6* Rated voltage: 220V~690V, 50-60Hz, 3ph AC* Work environment temperature: -25ºC~+50ºC, relative humidity ≤85%* Crane control mode: Floor control / Remote control / Cabin room Product Parameters

Lifting Weight			1	32/5								50 / 10
span				10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Max Lifting Height		Main	m	16								12
		Aux		18								16
Speed	lift	Main	m/min	A3								A3
				2.03								1.62
		Aux		9.28								6.3
	Travelling of crab			19								18.24
	Travelling of trolley			40.8			47.7					47.7			48.1
Motor	lift	Main	KW	YZR16OL-6/13								YZR200L-8 / 18.5
		Aux		YZR160L-8/9								YZR180L-8 / 13
	Travelling of crab			YZR132M,-6/ 2.5								YZR132M2-6 / 4
	Travelling of trolley			YZR132M-6/4×2			YZR160M-6/6.3×2					YZR16OM,-6/6.3×2			YZR160M2-6/ 8.5× 2
(mm)Main Size			B	4650			4700		5000			4800					5000
			Bo	6474			6620		6924			6724			6824		7144
			b	260			300
			S1	1070								1005
			S2	2050								2200
			Ss	1700								2000
			SA	2680								3195
			b	260			300					300
			H2	90	94	244	264	414	564	714	814	-79	96	102	252	402	552	702	802
			H	2437	2439			2475				2726			2732
			Hg	2520	2524	2614	2644	2794	2944	3094	3194	2531	2526	2532	2632	2782	2932	3082	3182
			H,	880			1010					1030
			H	705	701		571					1020			1014
			Hs	790								948
Weight	crab			10.0								14.5
	Total weight	Open		24.9	27.7	30.7	35.3	38.7	43.7	47.4	51.4	33.9	37.0	41.3	45.3	49.3	54.8	58.8	64.1
		Close		25.3	28.1	31.1	35.7	39.1	44.1	47.8	51.8	34.2	37.4	41.6	45.7	49.7	55.2	59.2	64.5
Max.wheel pressure			KN	244	260	274	297	309	32	340	350	373	396	417	432	453	471	484	500
Steel track recommended				QU7090								QU80100
Power source				3-Phase A.C.50Hz 380V

Detailed Photos
The Main GirderThe main girder is a box-shaped structure on the track. The section of the main girder is systematically analyzed and calculated using ANSYS finite element calculation method to ensure that it has sufficient strength, rigidity and overall stability. End CarriagesThe end carriages are the box-shaped structure, and the connection between the end carriages and the main girders is the rigid connection. In order to facilitate transportation, the end carriages are disconnected and connected by high-strength bolts.Company Profile
Huasui has 15 years of experience in crane and hoist design and manufacturing, 3 production factories covering an area of 168000 square meters, 10 production lines with annual production capacity 500 sets. It has more than 800 employees, including more than 20 technicians and more than 10% senior engineers. The factories have modern crane manufacturing and assembly equipment, and introduces European advanced management, process flow and quality control system to ensure safe, reliable and high quality cranes for customers, making customers' logistics operations easier and creating long-term value for customers.Our Advantages
Packaging and Transportation
Factory Picture
Certifications
FAQ
A: Can you provide custom service? B: Yes! We can customize all kinds of cranes according to your requirements. You just need to tell us your demands.
A:Which industries do you service? B: We service many industries including machinery, metallurgy, railway and so on. High quality products in different fields will play an important role.
A:Which areas do you service?B: We have a huge market both at home and abroad. We have exported our cranes to many countries, especially European, Africa and so on. A: How do you guarantee the quality?
B: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.A:What are the main products?
B: Our main products are overhead and gantry cranes. Different products have different models and application scenarios.
A:What international certifications has your company passed? B: Our cranes has passed CE, lSO, GOST, SGS, TUV, BV, and so on.

---
