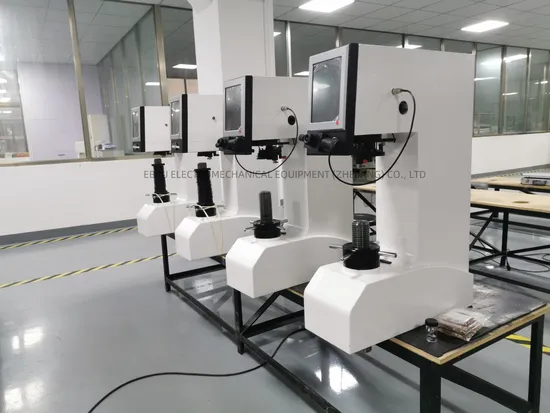

Cheap Price Digital Brinell Hardness Testing Machine Suitable for Rigid Plastics and Bakelite

Product Description

Product Description Cheap Price Digital Brinell Hardness Testing Machine Suitable for Rigid Plastics and Bakelite
Features:
1. Large test force range: 62.5Kgf to 3000Kgf
2. With 12 kinds of measurement scale
3. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
4. Measuring indentation automatically, no need to focus
5.Hardness value display on screen, and with hardness conversion function
6. Test force with automatic calibration function, load automatic corrected, much more accuracy
7. Hardness value automatic corrected according to different hardness block
8. Large test space: 135*200mm (Depth * Height)
9. Touch screen interface, menu structure interface, more information display
10. Save more samples and test information
11. Support to set a password for protection
12. With USB interface, test data can save to U-flash as EXCEL format, easy edit and process
13. Modular design, easy maintenance
14. Support upgrade to full automatic Brinell hardness tester
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Product Parameters Technical Specifications:

Model	B-3000AT	B-3000MT
Turret	Automatic turret	Manual turret
Brinell Scale	HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/1500 HBW10/1000 HBW10/250 HBW10/500 HBW10/3000
Load Kgf(N)	62.5 (612.9), 100 (980.7), 125 (1226), 187.5 (1839), 250 (2452), 500 (4903), 750 (7355), 1000 (8907), 1500 (14710), 3000 (29420)
Load accuracy	0.1%. Better than normal Brinell hardness tester 1% (above 1000Kgf)
microscope magnification	20X (option: 10X, 15X, 30X)
Min measuring unit	0.625µm ( option:0.3125µm)
Dwell time	5-60s
Hardness range	8-650HBW
Data output	LCD display, USB interface saved in USB flash disk (save in Excel format)
Executive Standard	ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Test space	200*135mm (H*D)
Power supply	AC220+5%,50~60Hz
Overall Dimension	550*210*750mm
Net weight	About 90kg

Standard Accessories:

Item	Quantity	Item	Quantity
Measuring microscope 20X	1	Diameter 2.5mm Hard alloy indenter	1
Accessories box	1	Diameter 5mm Hard alloy indenter	1
Anti dust cover	1	Diameter 10mm Hard alloy indenter	1
V-type working table	1	Medium working table	1
Hardness block	3	Large working table	1
USB flash disk	1	Quality certificate	1
Manual book	1

If want to get test report by computer after test, please additional purchase our Professional Brinell Indentation Measurement software system or Data Transfer software.
1) Professional Brinell Indentation Measurement software system
Support automatic measurement and manual measurement work mode, and can generate test report automatically in word format (including hardness value, indentation image, hardness curve, etc.)
2) Data transfer software
It can transfer test data to computer and generate test report in word format. Company Profile
EBP's mission is to be recognized as the global professional leader & best partner in the materials preparation and analysis industry, providing our users with innovative & robust full lab-solutions, reliable service, support & access to the knowledge that comes from our team serving the industry for 10+ years. We have 8 senior engineers who working in hardness tester and material testing industries over 10 years. We are skilled in provide complete solutions to our customers. And our professional sales & after-sales team can help our partners develop market more easier! Main products
EBPu Electromechanical Equipment (Zhejiang) Co., Ltd. is one of the professional companies in market, we are committed to becoming the most satisfied supplier to our partners & clients! Our products range: Sample preparation machine, Hardness tester, Metallographic Microscope, Non-destructive Testing Instruments (NDT), Universal testing machine, Impact testing machine and related consumable materials. Certifications
