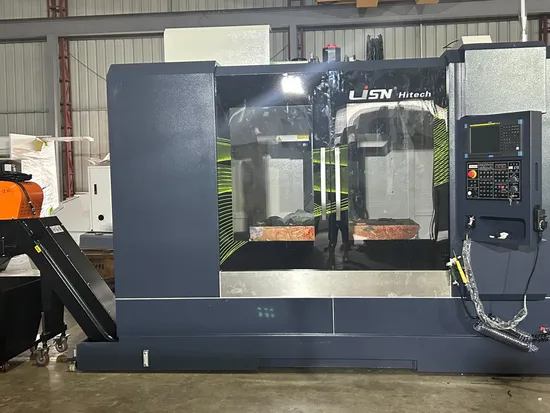

CE Siemens CNC System CNC System Vmc1370 Bt50 Spindle Taper High Precision Heavy-Duty CNC Milling Machine

Product Description

Product Description
High-precision machining: Experience the pinnacle of precision with the heavy-duty VMC1060. This state-of-the-art CNC marvel employs cutting-edge technology and a precision transmission system to execute high-precision machining tasks with unmatched accuracy. Its exceptional positioning precision and repeatability guarantee that your machining requirements for both dimensional and shape accuracy are consistently met.
Multi-function machining: Unleash the full potential of machining versatility with our sophisticated multi-axis control system. The machine effortlessly executes a myriad of complex operations, empowering simultaneous machining on three or four axes. It also boasts a rotary worktable for multi-sided machining, significantly boosting production efficiency and enhancing machining quality.
High-efficiency production: Revolutionize your production capabilities with the VMC1060's rapid feed rates and swift tool change times, paving the way for superior high-efficiency production. Its high-performance spindle drive system propels high-speed cutting, offering rapid cutting feed rates that minimize machining cycles and elevate production efficiency to new heights.
Flexibility and scalability: Discover unparalleled versatility with the machine's flexible programming capabilities and a vast array of machining parameter settings, designed to cater to diverse machining needs. It adeptly supports multiple processes including milling, drilling, and tapping, and offers customization to suit your specific requirements, facilitating the addition of extra functions and options seamlessly.
Detailed Photos
Product Parameters

Item	Specifications	MODELS→	VMC960	VMCH1060	VMC1160
Travel Range	X/Y/Z Axis Travel	mm	900/600/600	1000/600/600	1100/600/650
	Distance from spindle center to column track	mm	686	655	760
Worktable	Worktable (WidthxLength)	mm	1000x600	1300x600	1200x660
	Max Load Bearing Of Worktable	kg	600	800	1000
	T-Slot(number of SlotxSlot WidthxPitch)	mm	5x18x100	5x18x100	5x17.9x102
Spindle	Spindle Hole Taper	type	BT40	BT40	BT40
	Spindle Speed Range	r/min	10000	12000	150-12000
Feedrate	Max Cutting Feed Speed	mm/min	1-10000	1-10000	1-10000
Tool Magazine	Tool Shank	type	BT40	BT40/∅150	BT40
Motor	Spindle Motor	kw	7.5	11	11
Accuracy	X/Y/Z Position Accuracy	mm	0.005	0.005	0.005
	X/Y/Z Re-Position Accuracy	mm	0.003	0.003	0.003
Power Demand	Power Demand	kva	-	45	30
Machine Dimension	Machine Dimension	mm	2380x2650x2490	4500x2750x2600	2700x2300x2530
	Machine Weight	kg	4500	8000	6500

Company Profile
Taiwan Lizhun proudly established a distinguished branch in Dongguan Changan, Guangdong Province in 2006. This high-tech CNC machining center manufacturer masterfully integrates research and development, production, sales, and service. Specializing in the crafting of CNC machining centers and an array of supporting machine tools and equipment, they are strategically located in Dongguan City, famously dubbed the "world factory," spanning over a vast 20,000 square meters. Through relentless market demand exploration and continuous innovation, they have cultivated a highly efficient team across R&D, production, and service. The LiSN brand, a prestigious Lizhun subsidiary, has gained the trust of numerous renowned brands, thanks to its robust technical prowess, advanced testing equipment, comprehensive organizational structure, and industry-leading service philosophy. Their products and services span across sectors including the mold, new energy, 5G, furniture, machining, construction machinery, power equipment, and aerospace industries, contributing insightful solutions and wisdom to both China and the global manufacturing landscape. Lizhun remains steadfast in its commitment to the "integrity and innovation" ethos, dedicated to providing domestic and international clients with superior machine tools, equipment, and comprehensive solutions.
After Sales Service
1,Installation and commissioning: Enjoy complimentary installation and commissioning by our experts at your site. We also offer free training for your operators and maintenance personnel, ensuring smooth and seamless equipment integration.
2,Technical support: Benefit from our robust technical support, designed to optimize your processing procedures and fine-tune machine parameters to align with your specific product characteristics. Our support extends to the design and application of fixtures used in your product processing.
3,Warranty Period: Post machine tool acceptance, enjoy a 12-month warranty with free service within this period, guaranteeing timely and effective assistance.
4.Service Time Commitment: Our commitment to service ensures that within 24 hours of receiving your machine tool failure report, our dedicated after-sales service personnel will promptly address the issue.
5,Technical support after the expiration of the warranty: For five years post-warranty, we provide free soft technology consultation services, offering solutions for machine tool machinery or system failures at no extra cost.
6,Supply of spare parts after the expiration of the warranty period: Post-warranty, we offer comprehensive and preferential access to vulnerable repair parts over an extended period, ensuring your machinery's longevity and optimal performance.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
