Wood Kitchen Cabinets Doors CNC Router for Sale

Product Description

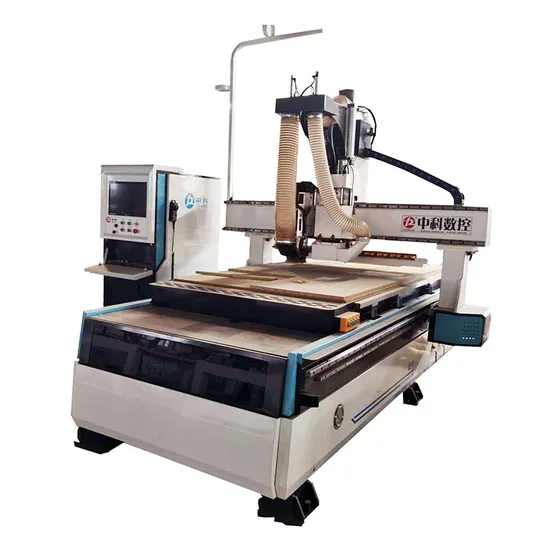

Machine detail photo:
Application: 1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.
5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
Specification

X,Y,Z Working Area	1300*2500*200mm|4´*8´
Optional Working Area	1300*1300*200mm|4´*4´
	1500*3000*200mm|5´*10´
	2000*3000*200mm|6´*10´
	2000*4000*200mm|6´*13´
	2000*6000*200mm|6´*20´
Spindle Power	9kw Italy HSD air cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.03/2000mm
Table Surface	Vacuum table+Intergrated T-solt table clamping System
X,Y,Z Rail and Trasmission	X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	80m/min
Max. Working Speed	60m/min
Cutting thickness	According materials
Spindle Speed	12000-24000RPM
Drive Motors	Shanghai WEIHONG servo motor and driver
Working Voltage	AC380v/50HZ/3 phase
Command Language	G code
Operating System	Shanghai WEIHONG control system
Interface	USB
Software Compatibility	Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment	Temperature: -20ºC~45ºC Relative Humidity: 5%~75%

Sample pictures
Technical Support:
1. Warranty & Aftersales service:
A)warranty is 1 year
B)24 hour technical support by email or calling
C)User-friendly english manual for machine using and maintaining
2. Rationalization of pre-sales consulting
Package picture:
If you have special requirements, of course, we can customize the machine according to your requirements to suit your needs.

---
