RFID Card Chip Modules Implanting and Bonding Machine

Product Description

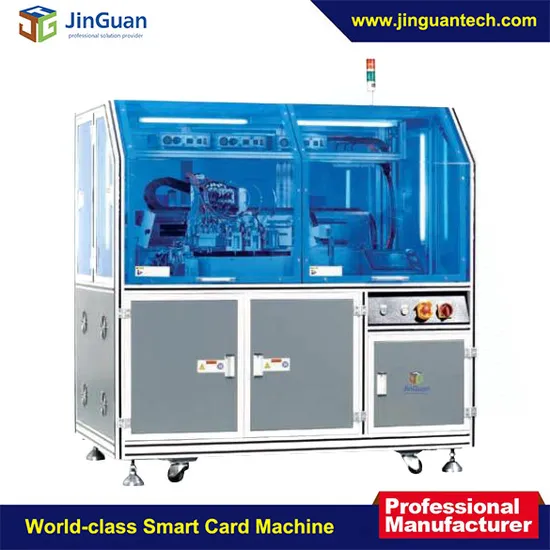

Wire Embedding and Antenna Bonding Combi Machine Brief Introduction
JGSAM-4000+ is integrating with full auto antenna embedding and auto bonding for antenna and chips/other metal together.
It combines the advantage of both antenna embedding machine and antenna bonding machine,servo system control, with the double pulse current inverter welding. The welding heads can be fine adjusted at X, Y, Z direction, with the purpose of precise welding,the machine is steady, easy operation and simply maintenance
It uses the domestic ultrasonic embedding technology to embedding the wire. Just need one person to operate, which save the labor and reduce costs, at the same time, ensure the quality of the products.
In the machine structure, the machine is easy to operate and maintain,which enhances the service life of machine and the productivity.
Features
1.Adopt advanced ultrasonic wire embedding technology from USA.
2.Machine runs stable; Antennas are well distributed with uniform spacing.
3.Designed for wire layer of different layouts and various shapes of antenna.
4.Use the Mitsubishi Servo driver, stable and visualized.
5.PC control with CAD software for easy adjustment.various kinds of shapes drawings can be set up easily.
6.Materials loading using dowel pin and vacuum absorbed, easy to adjust.
7.After chip placing and wire embedding, the bonding machine can quick finish the welding of wire and chip.
8.Use the double pulse current inverter welding machine, convenient and directly to monitor the welding, precision and high quality.
9.Servo system controls the position of welding heads, which ensure the welding quality and protect the welding heads.
10.The welding heads can be fine adjusted at X,Y, Z direction.
11.Use the servo system to position to ensure the position accurate.
12.Use the Delta PLC and the touch screen, stable and visualized.
Technical Parameters

Item No.	JGSP-4000
Overall Dimension	L1500 *W1700 *H1800 mm
Machine Weight	Approx.2000kg
Electricity Input	Voltage: AC220V 50/60Hz
	Current: 30A
Power Consumption	5KW
Compressed Air	6.00 kg/cm²
Compress Air Consumption	300L/min
Control Technology	Servo Positioning+PC Control
Servo Precision	X, Y=0.0125mm
Tolerance	±0.02-0.05mm
Operator	1 Person
Pass Rate	99.80%
Applicable materials	PVC/PC/PETG/ABS and etc.
Output Speed	4000-4200 Coils/Hour
