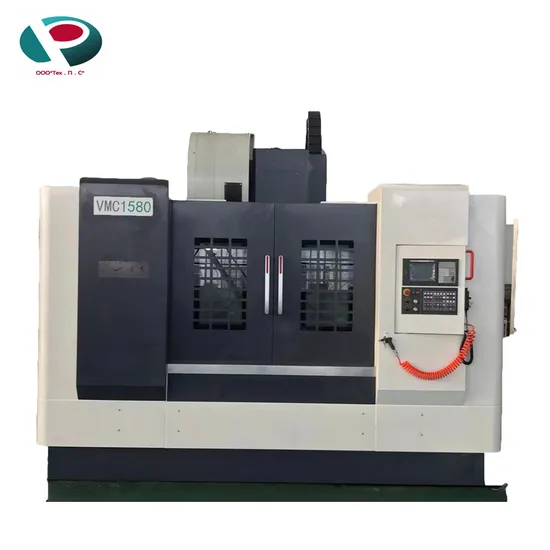

CNC Vertical Milling Machine Fanuc/Siemens/GSK/Syntec System 3/4/5 Axis 24 Arm Tool Magazine

Product Description

Product Description
Application VMC is suitable for the mechanical procedding and mold making.
And it can adapt to the processing requirment from rough machining to finish machining.
It can also finish many working procedures like milling,drilling,tapping,boring etc.
Features
Hot Sale VNC650
1.High quality resin sand 2.Tsiwan spindle 3.Taiwan ball screw and locking nut 4.Taiwan pressure cylinder 5.Japan NSK bearing 6.Germany R+W coupling 7.Automatic lubrication system 8.Chip conveyor at optional
Technical Parameter:

Specification	Unit	VMC1580
Table size	mm	800*1700
Table travel X,Y,Z	mm	1500/800/700
Max table load	kg	1500
Distance between spindle and table surface	mm	150-900
Spindle center to column surface	mm	871
Rapid feed speed X	m/min	24
Rapid feed speed Y	m/min	24
Rapid feed speed Z	m/min	20
Cutting feed rate	mm/min	1-10000
T-slot (N/W/D)	-	5/22/135
Spindle speed range	rpm	6000
Spindle taper	/	BT50
Spindle motor power	Kw	15
Magazine capacity	T	24
Tool magazine type		Disc type
Positioning accuracy	mm	±0.008
Repeatabiblity	mm	±0.005
Overall size	mm	4260*3545*3200
Net weight	kg	14000

Details Picture:
Company Profile:
Packing and Dclivery
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
