Factory Tungsten Carbide Corner Radius Milling CNC Machine Cutting Tool Manufacturers

Product Description

Product Description

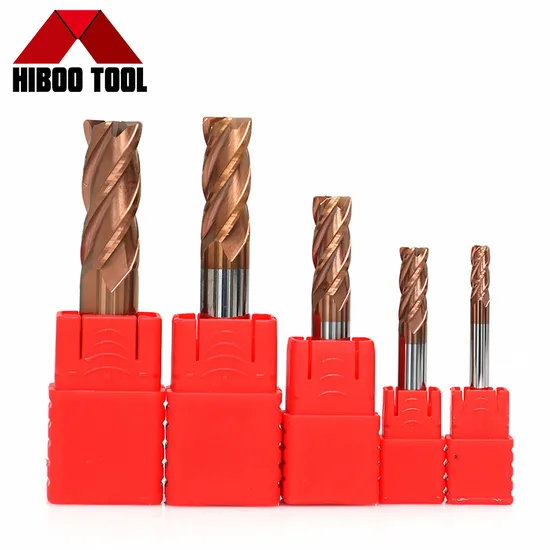

RLD Factory directly CNC HRC55 solid carbide corner radius end mills milling cutter 4 flutes for cutting metal steel

Product Name	RLD Factory directly CNC HRC55 solid carbide corner radius end mills milling cutter 4 flutes for cutting metal steel
Features	Top-rated Series
Processing Type	Metal
Precision	within 0 ~-0.01mm
HRC	55
Suitable For	Iron, Cast iron, Common steel, Hardened Steel under hardness HRC55
Machine Type	CNC Milling Machine
Flutes	4
Diameter	1-20mm
Overall Length	50-150mm
Co	12%
TRS Min(N/MM²)	4000
HRA	92.2

1).Super Raw Materails:Kennametal Metal, Carbide , CB Carbide from Taiwan

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2 &WF25(Taiwan)	K44 & K40	H10F
Grain Size:0.7um Co:10 % Flexural strength:3800N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2).High Quality TiSiN Coating , get the longer tool life

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

Product Show

Product Specification
The following Specification for your refer, We also provide the OEM or ODM service

order number	cutting	Flute	Shank	Corner	A.0.L
	d	l	D	R Corner	L
1×3×4D×R0.2×50L×4F	1	3	4	R0.2	50
1×3×4D×R0.3×50L×4F	1	3	4	R0.3	50
1.5×3×4D×R0.2×50L×4F	1.5	4	4	R0.2	50
1.5×3×4D×R0.3×50L×4F	1.5	4	4	R0.3	50
2×6×4D×R0.2×50L×4F	2	6	4	R0.2	50
2×6×4D×R0.3×50L×4F	2	6	4	R0.3	50
2.5×8×4D×R0.2×50L×4F	2.5	6	4	R0.2	50
2.5×8×4D×R0.5×50L×4F	2.5	6	4	R0.5	50
3×8×3D×R0.3×50L×4F	3	8	3	R0.3	50
3×8×3D×R0.5×50L×4F	3	8	3	R0.5	50
3×8×4D×R0.3×50L×4F	3	8	4	R0.3	50
3×8×4D×R0.5×50L×4F	3	8	4	R0.5	50
4×10×4D×R0.5×50L×4F	4	10	4	R0.5	50
4×10×4D×R1.0×50L×4F	4	10	4	R1.0	50
4×10×6D×R0.5×50L×4F	4	10	6	R0.5	50
4×10×6D×R1.0×50L×4F	4	10	6	R1.0	50
5×13×6D×R0.5×50L×4F	5	13	6	R0.5	50
5×13×6D×R1.0×50L×4F	5	13	6	R1.0	50
6×15×6D×R0.5×50L×4F	6	15	6	R0.5	50
6×15×6D×R1.0×50L×4F	6	15	6	R1.0	50
8×20×8D×R0.5×60L×4F	8	20	8	R0.5	60
8×20×8D×R1.0×60L×4F	8	20	8	R1.0	60
8×20×8D×R1.5×60L×4F	8	20	8	R1.5	60
10×25×10D×R0.5×75L×4F	10	25	10	R0.5	75
10×25×10D×R1.0×75L×4F	10	25	10	R1.0	75
10×25×10D×R1.5×75L×4F	10	25	10	R1.5	75
10×25×10D×R2.0×75L×4F	10	25	10	R2.0	75
12×30×12D×R0.5×75L×4F	12	30	12	R0.5	75
12×30×12D×R1.0×75L×4F	12	30	12	R1.0	75
12×30×12D×R1.5×75L×4F	12	30	12	R1.5	75
12×30×12D×R2.0×75L×4F	12	30	12	R2.0	75
3×8×3D×R0.3×75L×4F	3	8	3	R0.3	75
3×8×3D×R0.5×75L×4F	3	8	3	R0.5	75
3×8×4D×R0.5×75L×4F	3	8	4	R0.5	75
3×8×4D×R1.0×75L×4F	3	8	4	R1.0	75
4×10×4D×R0.5×75L×4F	4	10	4	R0.5	75
4×10×4D×R1.0×75L×4F	4	10	4	R1.0	75
4×10×6D×R0.5×75L×4F	4	10	6	R0.5	75
4×10×6D×R1.0×75L×4F	4	10	6	R1.0	75
5×13×6D×R0.5×75L×4F	5	13	6	R0.5	75
5×13×6D×R1.0×75L×4F	5	13	6	R1.0	75
6×15×6D×R0.5×75L×4F	6	15	6	R0.5	75
6×15×6D×R1.0×75L×4F	6	15	6	R1.0	75
8×20×8D×R0.5×100L×4F	8	20	8	R0.5	100
8×20×8D×R1.0×100L×4F	8	20	8	R1.0	100
8×20×8D×R1.5×100L×4F	8	20	8	R1.5	100
10×25×10D×R0.5×100L×4F	10	25	10	R0.5	100
10×25×10D×R1.0×100L×4F	10	25	10	R1.0	100
10×25×10D×R1.5×100L×4F	10	25	10	R1.5	100
10×25×10D×R2.0×100L×4F	10	25	10	R2.0	100
12×30×12D×R0.5×100L×4F	12	30	12	R0.5	100
12×30×12D×R1.0×100L×4F	12	30	12	R1.0	100
12×30×12D×R1.5×100L×4F	12	30	12	R1.5	100
12×30×12D×R2.0×100L×4F	12	30	12	R2.0	100

Packaging & Shipping
Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.

Payment Term
T/T ,Western Union , MoneyGram,L/C
Company Profile
Changzhou Hiboo Tools Co., Ltd is a high-tech enterprise with all vitality, potential and comprehensive Strength. The company located in Changzhou, Jiangsu, China, a unique place near by Shanghai.We are Gold Supplier who specialized in producting and exporting Carbide End Mills, Drills, Inserts, Reamers and more other customized cutting tools.The efficient workshop and Imported 5AXIS grind machines run by skillful operators. The strict inspection standards to make sure each cutter is inspected by Zoller Measuring and Inspecting Machine. Now, Our monthly output up to 50000pcs of carbide end mills, drills ect, More than 20000 cutters are in stock which meet your urgent requirements. Enough Raw Materials in stock to keep the price stability.
