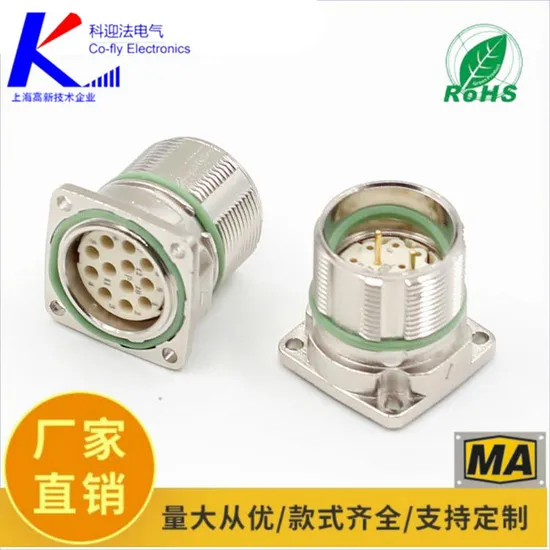

M23 12-Pole Male Waterproof Electronic Circular Terminal Socket Connector

Product Description

M23 12-Pole Male Waterproof Electronic Circular Terminal Socket Connector

Description of Waterproof M23 shielded connector,IP67 M23 field assembly connector ,fix thread M23

Φ Waterproof M23 connector,fix screw with self-locking threaded joint,waterproof IP67 M23cable connector.

Φ Protected from dust and water during immersion,resistance to many oils and chemical.

Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Technical data of cable waterproof connector

Φ Standard :IEC 61076-2-101

Φ Coding : A,B,D

Φ Pins: 2~17 pin

Φ Ambient temperature:-20°C~+85°C

Φ Insulation resistance ≥ 100M Ω

Φ Degree of peotection : IP67 in locked condition

Cable/Connector specification

Φ Insert : PA+GF

Φ Contact:Copper Alloy with gold plating

Φ Overmold:TPU

Φ Cable Jacket:PVC or PUR

Φ Wire insulation:PVC

Φ Cable length:Option

All prices for M23 12-Pole Male Waterproof Electronic Circular Terminal Socket Connector are not accurate, please contact us for the latest prices .
Add: F2, Building 5, No. 1881 Lanyin Rd,
Songjiang High-tech industrial park, Shanghai, China
Contact: Nina Lai
Since 2004, Co-fly has been specialized in and focused on R&D, production, marketing and service of waterproof connectors, sensors (M12 connector, M8 connector, M16 connector, M23 connector, M5, etc.), special custom type connector, I/O bus module (M12 hub, M8), one-to-two T-shape and Y-shape splitter, sensor of car tank, wiring harness of new energy automobile, pressure sensors and industrial automation.
Typical projects, include Shenzhen airport, Shanghai Pudong airport, Shanghai metro, Wuhan metro, Xi'an metro subway, the expo project and so on. Our company has served more than 4000 multinational group and listed companies since its establishment, trust by many years of cooperation is valuable, and also it's the power source to redouble our effort. We do not dare to idle.
1. Q: What is the necessary information needed for quotation?
A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.
2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.
3. Q: What do the certifications have?
A: ISO9001:2008, ISO14001, CSA. IATF16949.
4. Q: What does Co-fly can provide for the product' certification?
A: IP67, IP69, UL, CE and RoHS.
5. Q: Sample lead time?
A: One week.
6. Q: Volume order lead time?
A: 3-4 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms is available?
A: T/T, FOB ,EXW, FOB are all available.
