Factory Price Industrial Pipe Cutting Machine Manufacturers

Product Description

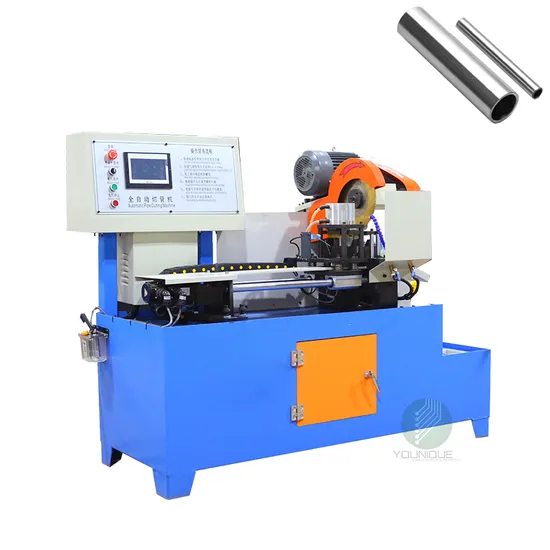

Product Description Equipped with PLC computer control, the YE-Q2 automatic tube cutting machine adopts servo motor automatic feeding. Various configuration possibilities allow cutting lengths from 5mm to 6m for a variety of applications.
Metal automatic tube cutting machine is widely used in fitness equipment, construction machinery, household manufacturing, and other industries. In different applications of various shapes of pipe, higher requirements are put forward for cutting metal pipe.
Machinery main circuit is controlled by imported PLC computer, the operation is simple, sensitive, and convenient maintenance. Automatic feeding adopts a servo motor, precision screw, and linear bearing, which cutting precision is ±03mm. The counter can set the processing times, when the processing is finished it automatically stops. The counter can accumulate a day's work. When the processing size changes, just change the size in the text display to work, without manual positioning or hardware positioning. Technical Parameters

Performance		Specifications
Cutting capacity	round bar	∅60mm
	square bar	50*50mm
	round pipe	∅120mm
	L-shape bar	115*115mm
	square pipe	110*110mm
	rectangle bar	110*50mm
Feed length	5mm-6m no manual positioning/servo motor
Blade speeds	stepless adjustment
Host motor	3.7kw,2.2kw consequent-poles double-speed
Saw	HSS ∅250-400mm(10″-16")standard ∅350
Clamping vise	single
Max. clamping capacity	150mm
Cylinder feeding travel	650/single time,1300/double-time,1950/three-time
Hydraulic motor	3HP
Servo motor feeding travel	uninterrupted
Servo motor feeding travel	1KW
Operation pressure	25-35KG/CM2
Standard configuration	Cooling system, oil hydraulic system, adjustment, adjustment tool
Machine dimensions	2200*1400*2200mm
Total weight	1450kg

Main Application
Company Profile
Certifications
Packaging & Shipping
FAQ

---
