Aluminium 1000W Welding Laser Machine Portable Laser Welding Machine Air-Cooled Laser Welding Equipment for Stainless Steel

Product Description

Product Description

Product Description

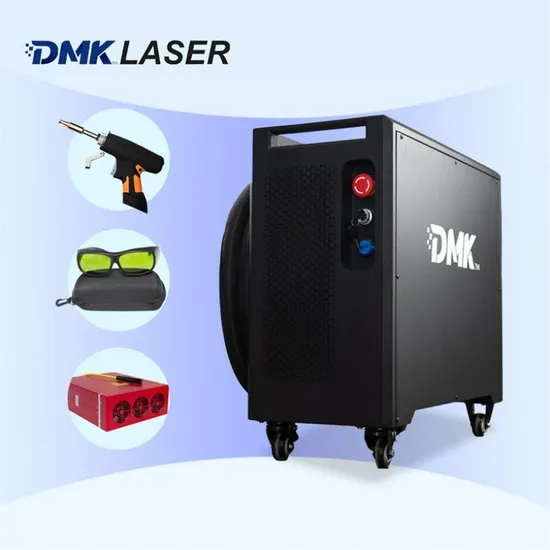

"Fiber Continuous Laser Handheld Welding Machine" Consists Of All-In-One Cabinet, Fiber Laser, Laser Control System And Handheld Welding Head. This Product Is Widely Used In Metal Advertising Word Welding, Stainless Steel Engineering Welding, Sheet Metal Cabinet Welding And Large Sheet Metal Structure Welding.

Product Features

Easy To Move
The Volume Of The Whole Machine Is Less Than 0.1m³, And The Weight Is Light: 54Kg.
Easy To Hold
The Welding Torch Head Is Small In Size, All Aluminum Alloy Body, Light In Weight.
Precise And Stable
The Laser Control System Is Precise, The Beam Is Stable, And The Weld Quality Is Consistent.
Welding Speed Is Fast
2-10 Times Faster Than Traditional Welding, A Machine Can Save At Least Two Welders A Year.

The Weld Is Smooth And Beautiful
Reducing The Subsequent Grinding Process And Saving Time And Cost.

No Welding Work Deformation
Patent Appearance
Unique Appearance Patent Design, Magnesium Aluminum Alloy Shell, Good Toughness And High Strength.

Simple Storage
Patented Design For Quick Storage Of Armored Cables And Welding Torch Tips.

Easy Maintenance
Integrated Design, Easy Maintenance.
Production Specification

Production Specification

Model	DHH-750	DHH-1000	DHH-1500	DHH-2000
Laser power	750W	1000W	1500W	2000W
Working mode	Continuous or modulate
Laser wavelength	1064NM
Beam quality	M2<1.1	M2<1.2	M2<1.2	M2<1.2
Power supply	AC220V±5% 50/60Hz 10A	AC220V±5% 50/60Hz 16A	AC220V±5% 50/60Hz 16A	AC220V±5% 50/60Hz 20A
Power	≤2300W	≤3000W	≤3500W	≤4500W
Cooling system	Air cooling
Fiber length	Customizable
Temperature range of working environment	0~38 ºC
Applicable materials	Carbon steel,stainless steel,galvanized sheet, etc
Welding thickness range	MAX2mm	MAX3mm	MAX4mm	MAX4mm
Weld requirements	<0.5mm

Production Application

Product Applications

Machinery industry, household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries. Hot Product

1500W Air-Cooling Portable Fiber Laser Welding Machine
Model	DHH-1500
Laser power	1500
Working mode	Continuous or modulate
Laser wavelength	1080NM
Beam quality	M2<1.2
Standard output laser power	±2%
Power supply	AC220V±10%16A 50/60Hz
Power	≤4KW
Cooling system	air-cooled
Fiber length	10M Customizable
Temperature range of working environment	5~38 ºC
Humidity range of working environment	< 70% No condensation
Welding thickness range	MAX4mm
Applicable materials	Carbon steel,stainless steel,galvanized sheet, etc
Weld requirements	<0.2mm
Welding speed	0~120 mm/s
equipment dimensions and weight	65*35*60CM 48KG

Mini Portable Fiber Laser Welding Machine
Model	DHH1000	DHH1500	DHH2000
Laser Power	1000W	1500W	2000W
Stainless Steel Welding Penetration	2.68mm	3.59mm	4.57mm
Carbon Steel Welding Penetration	2.06mm	2.77mm	3.59mm
Welding Penetration Of Aluminum Alloy	2.00mm	3.00mm	4.00mm
Focus Spot Size	0.2-5.0mm	0.2-5.0mm	0.2-5.0mm
Wire Feed Specification	0.8/1.0/1.2mm	0.8/1.0/1.2/1.6mm	0.8/1.0/1.2/1.6mm
Cooling Method	Water Cooling	Water Cooling	Water Cooling
Power Supply	220V/50-60HZ	220V/50-60HZ	220V/50-60HZ
Total Power	4.5KW	6.5KW	8.5KW
Overall Size	109x45x79cm	109x45x79cm	109x45x79cm

Water-cooling Handheld Fiber Laser Welding Machine
Model	DHH-3000
Maximum laser power	3000W
Melting depth (stainless steel, welding speed 1.5 m/min)	6.26mm
Melting depth (carbon steel, welding speed 1.5 m/min)	5.79mm
Melting depth (aluminum alloy, welding speed 1.5 m/min)	5.2mm
Automatic wire feeding	0.8/1.0/1.2/1.6mm
Power consumption of the whole machine	10KW
Cooling method	water cooling
Dimension	120*90*120cm
Weight	300KG

Robotic Laser Welding Machine
Model	DHH-1500	DHH-2000	DHH-3000
Laser Power	1500W	2000W	3000W
Laser wavelength	1080nm	1080nm	1080nm
Laser frequency	50-5000HZ	50-5000HZ	50-5000HZ
Power adjustment range	10-100%	10-100%	10-100%
Welding depth (stainless steel)	2.68mm	4.57mm	5.5mm
Welding Depth (Carbon Steel)	2.06mm	4.59mm	5.0mm
Welding depth (aluminum alloy)	2.0mm	3.0mm	5.0mm
Power supply	220V/50HZ	220V/50HZ	380V/50HZ

Jewelry Laser Spot Welding Machine
Model	DHH-100	DHH-150
Laser Power	100W	150W
Equipment style	Desktop model laser spot welder	Desktop model laser spot welder
Laser Wavelength	YAG /1064nm	YAG /1064nm
Pulse Width	≤15ms	≤15ms
Pulse Frequency	≤100Hz	≤100Hz
Welding Spot Diameter	0.2-2mm	0.2-2mm
Filler Wire Diameter	0.1~0.5mm	0.1~0.5mm
Power Consumption	2KW-7A	3KW-10A
Power Supply	AC220V±5% single phase	AC220V±5% single phase
Operation Interface	LED touch control interface,Chinese/English available	LED touch control interface,Chinese/English available
Locating System	CCD /Coaxial CCD for microscope(10X)	CCD /Coaxial CCD for microscope(10X)
Cooling Type	water cooling	water cooling
Machine Dimensions	790*430*590mm	790*430*590mm
Machine Net weight	65KG	65KG
Work Environment	Temperature 0~35ºC, Humidity 5~85%	Temperature 0~35ºC, Humidity 5~85%

1000W/1500W/2000W/3000W Cw Laser Cleaning Machine
Type	DCL-1000	DCL-1500	DCL-2000	DCL-3000
Laser source	CW Fiber	CW Fiber	CW Fiber	CW Fiber
Laser Power	1000W	1500W	2000W	3000W
Fiber cable	10 M	10 M	10 M	20 M
Wavelength	1070nm	1070nm	1070nm	1070nm
Clean speed	≤20M²/Hour	≤30M²/Hour	≤50M²/Hour	≤70M²/Hour
Beam width	10-200mm	10-200mm	10-200mm	10-200mm
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Water cooling	Water cooling	Water cooling	Water cooling
Voltage	Single Phase 220/110V, 50/60HZ	Single Phase 220/110V, 50/60HZ	Three Phase 380/220V, 50/60HZ	Three Phase 380/220V, 50/60HZ

Pulsed Laser Cleaning Machine
Model	DPL-50W	DPL-100W	DPL-200W	DPL-300W
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	50W	100W	200W	300W
Fiber cable	3M	5M	5M	5-8M
Pulse Energy	1.5 mJ	1.5 mJ	2mJ	2mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	1-2000KHz	1-2000KHz	1-2000KHz	1-2000KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤20 M²/Hour	≤30 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Air cooling	Air cooling
Dimension	265*210*118	339*350*123	268*445*135	268*445*135
Weight	6.8Kg	8.5Kg	12.5Kg	15Kg
Beam width	10-70mm	10-70mm	10-70mm	10-70mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 °C	5-40 °C	5-40 °C	5-40 °C
Voltage	220/110V, 50/60HZ	220/110V, 50/60HZ	220/110V, 50/60HZ	220/110V, 50/60HZ

Power regulation range	500W/1000W
Power regulation range	10%~100%
Central wavelength	1064 nm
Polarization direction	arbitrarily
Beam quality factor	BPP=9/BPP=3.5
Laser line-width	Length: 5mm ~ 100mm, adjustable Width: 5mm ~ 100 mm, adjustable
Scanning images	Support linear, 2D, circular, rectangular progressive scanning, rectangular ring, triangle, spiral
Laser pulse frequency	5kHz ~ 200kHz adjustable
Maximum single pulse energy	15mJ
Fiber length	10m
Minimum bending radius of optical fiber	200mm
Stability of laser output	<5%
Cooling mode	water cooling
Polarization direction	arbitrarily
Guided laser function	have
Anti hyper reflexes	have
Field mirror model	F254
Operation type	Operation type
Supply voltage	AC 220±10%V
Mains frequency	50/60 Hz
Operating temperature range	0ºC ~ 40ºC
Storage temperature range	-10ºC ~ 60ºC

slag remover
Fast speed: The speed is several times faster than manual cleaning.
Safe under-stage operation: the equipment has a long handle and good operation performance, and the cleaning work can be completed under a single person.
High flexibility: flexible and convenient operation, only need to lift the extension rod for line change, no need for workers to go on stage to carry and change lines.
Convenient to carry: the whole machine is small in size, light in weight, and has walking wheels, which is convenient to carry.
Reduce workload: Compared with time-consuming and laborious manual cleaning, it can reduce the workload by 40%.
Cost reduction: Compared with the cost of regular replacement of the sword fence, it can save up to 75% of the cost through multiple cleanings.
Packaging & Shipping

Package

Features Of Our Company's Product Transportation Packaging:1)Protection: The Main Function Of Packaging Is To Protect The Product From Damage During Transportation. This Includes Shipping Products Around The World By Truck, Sea Or Air.2)Security: Packaging Can Also Include Security Features Such As Seals Or Shrink Wrap To Prevent Tampering And Theft.3)Compliance: International Shipping Must Comply With Different Regulations, And Packaging Often Needs To Reflect These Compliances. This Can Include Specific Labels And Documentation Attached To The Packaging.4)Environmental Protection: As People's Awareness Of Sustainable Development Continues To Increase, It Is Important To Consider Environmentally Friendly Packaging Solutions. Company Profile

Company Profile

Demark (Wuhan) Technology Co., Ltd Is A High-Tech Enterprise Focusing On The Research And Development, Production, Sales And Service Of Fiber Laser Equipment. Lt Is Headquartered In Wuhan Optics Valley, The Birthplace Of Laser Technology In China.Relying On The Solid Scientific Research Strength Of Huazhong University Of Science And Technology, The Company Has Mastered A Number Of Core Technologies In Laser Cutting,Welding, Cleaning And Marking Through More Than 20 Years Of Exploration And Accumulation,And Has More Than 60 Patent Protections.
FAQ
Q: What are the advantages of using a handheld laser welding machine?
A: Some of the advantages of using a handheld laser welding machine include precision, speed, and flexibility. The machine can weld materials that are difficult or impossible to weld with traditional welding methods, and it produces a high-quality weld with minimal distortion.

Q: What types of materials can be welded with a handheld laser welding machine?
A: Handheld laser welding machines can be used to weld a variety of materials, including stainless steel, aluminum, copper, brass, and titanium. They can also be used to weld dissimilar materials, such as steel and aluminum.

Q: What are some applications of handheld laser welding machines?
A: Handheld laser welding machines are used in a wide range of industries, including automotive, aerospace, medical, and jewelry. They can be used to weld components for engines, transmissions, and other mechanical parts, as well as to repair or modify existing parts.

Q: Are handheld laser welding machines safe to use?
A: Yes, handheld laser welding machines are generally safe to use when operated properly. However, it is important to follow safety guidelines and wear appropriate protective gear, such as goggles or a face shield, when using the machine.

Q: What is the cost of a handheld laser welding machine?
A: The cost of a handheld laser welding machine can vary depending on the manufacturer, model, and features. Generally, they can range from several thousand dollars to tens of thousands of dollars.

Q: Do handheld laser welding machines require special training to operate?
A: Yes, operating a handheld laser welding machine requires special training and certification. This is because of the high-powered laser beam used by the machine, which can be dangerous if not handled properly. Training programs are offered by manufacturers and industry organizations.

---
