Ck61630 Heavy Duty Horizontal CNC Lathe Machine

Product Description

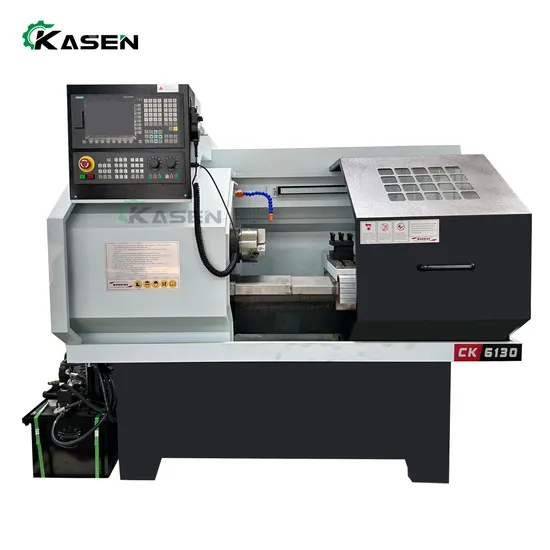

Economical CNC Precision Lathe CK6130 Horizontal Cnc Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:360mm bed width,Spindle hole 48mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,4/6/8 station electric turret,Spindle hole 52mm,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters

SPECIFICATIONS	Units	CK6130
Swing over bed	mm	300
Swing over cross slide	mm	120
Distance between centers	mm	350
Max.processing length	mm	500
Spindle bore	-	48
Spindle nose type	-	A2-5
Spindle speed steps	-	Stepless
Spindle speed range	rpm	150-2500
Turret/tool post	-	Gang type
Tool size	mm	16 x 16
X axis travel	mm	300
Z axis travel	mm	350
Tailstock quill diameter	mm	Φ52
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	90
Main spindle motor	kw	4
Machine weight	kw	1000
Machine size	mm	1980*1150*1670

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
