P4z/P5z/P6z Axial Cooling Fan/Impeller/Blade for Powder Separation Circuit

Product Description

Detailed Photos

Product Description

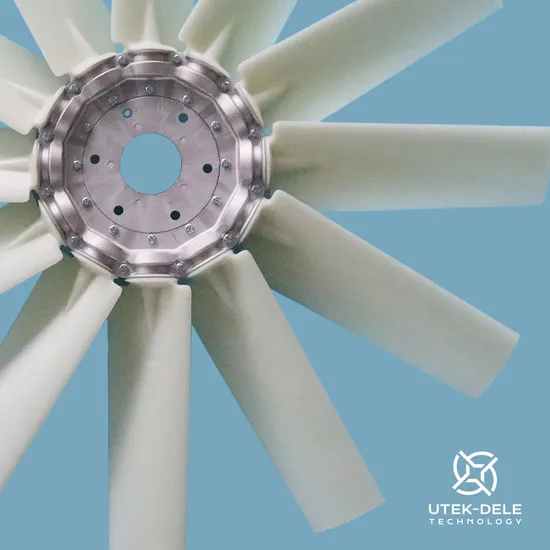

P4Z/P5Z/P6Z
The fan diameter ranges from 305-1343mm,and the blade twist angle can be adjusted from 20°to 50°to meet the different application requirement of the customer. The P4Z P5Z blade is only the geometric enlargement of the P6Z, other type blade is same with it and the root design is identical. The root is locked in the fan hub by a plastic fixing pin,which ensures that the blade will not be displaced after installation and the twist angle remains unchanged. Blade molded from high-strength thermoplastic materials or die-cast from a aluminum alloys have the following advantages:
1.More efficient
2.Less absorbed power
3.Low noise
4.Light weight High strength
5.Preservative
6.Customization
Blade Material

Symbol	Material	Temperature range	Characteristic	Application
PA	Nylon6,Black	-40ºC-110ºC	Anti-aging	Standard load
PAG	Nylon6,Black and white	-40ºC-110ºC	Anti-aging	Heavy load
PAGST	Nylon6,Black	-40ºC-110ºC	Shock and impact	Strong vilbration occasion
PACAS	Nylon6,Blue-gray	-30ºC-100ºC	Conductivity Fire resistance	Explosive danger
ALU	Die-cast aluminum alloy	-40ºC-150ºC	Large temperature range	High temperature

Blade Diameter range

P4/5/6Z Blade number	Fan diameter mm (Minimum-Maximum)
	P4Z	P5Z	P6Z
5	323 - 764	305 - 1035	339 - 1117
7	360 - 801	342 - 1072	376 - 1154
8	440 - 881	422 - 1152	456 - 1234
9	374 - 815	356 - 1086	390 - 1168
12	454 - 895	436 - 1166	479 - 1248
16	549 - 990	531 - 1261	565 - 1343

Application

Packaging & Shipping
We can deliver by air and sea
One unit we reinforce with a cardboard box
For multiple units we will use fumigation-free wooden boxes

Factory show
UTEK-DELE has its own processing capabilities and can customise products for customers, as well as R&D production capabilities

Certifications
Partners
UTEK-DELE ADVANTAGE 1.Same quality as wingfan and multiwing
2.Software to design the model
3.Full sets of blade and hub
4.Fast delivery
Give us a chance, and we' ll return you with satisfaction.

---
