Lump Crushing Equipment Lump Breaker Machine Information Lump Breakers

Product Description

Lump breaker Function The DLP Lump Breaker is the ideal device for breaking up material lumps which have formed during handling or processing but are soft enough to be broken up.
Quick rotation of special chopping knives through a fixed grid does the job. The presence of two rotor shafts results in high throughput rates.


Features Material: carbon steel, 304L stainless steel Two sizes available: 25 ~ 50 m3/h (15 ~ 30 cfm) Contains two rotor shafts equipped with chopping knives and a fixed grid to reduce clearance Drive unit with fixed speed gear motor or variable speed drive, chain or gear transmission Benefits Sturdy and compact Modular design Compact shipping dimensions and easy to install
SDCAD brand Lump-breaker

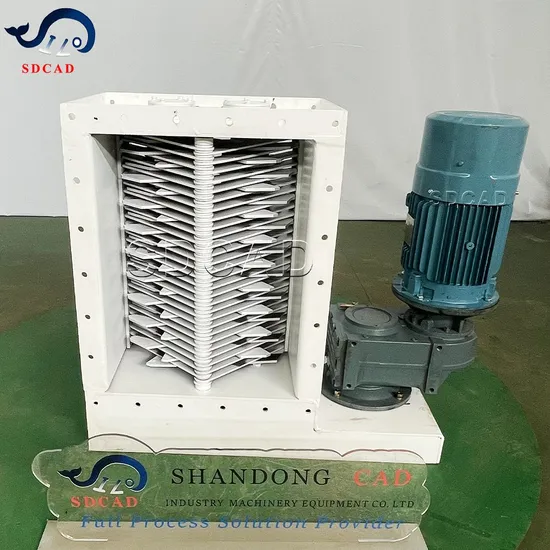

Lump-breaker with double crushing shaft
The lump breaker is an ideal solution to reduce the size grading of products tending to form lumps. Composed of a primary shaft and a secondary shaft rotating in opposite directions, this assembly allows the crushing of lumps that form during the transport of cohesive products.
It is available in different sizes, from the diameter 300 to the diameter 1000 mm and it can process a large quantity of product. The lump breaker with double crushing shaft allows flow of 40m³ of product per hour.
The lump breaker is integrated under the sealing and pre-transport system. Its limited height enables it to be easily integrated into processes where space is limited.
Specification

Power	5.5kw
Output speed	219r/min
Output torque	240N.m
Ration	6.58 i
Service factor	1.66fB
Motor pole	4P
Motor and reducer	china famous brand
Weight	95kg
Capacity	50t/h
Brand	SDCAD

After Sales Service

Pre-Sales Service	After-Sales Service
Customer consultant 24 hour online;Engineer team provide design drawing;Skilled staff responsible for production;Take pictures for all Production process.	Provide installation instruction;Solve any problems involved;Tell the machinery maintain guidance;Regular monthly sales tracking.

Contact us
Company Profile
FAQ
Q - May you introduce your Factory?A - Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong -the only province which cover all industrial sectors in China.
Q - What's the Advantage of your products?
A - Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
Q - What is your Delivery time?
A - 3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line.
Q - What Certificate do you have to ensure quality?
A - CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Q - Do you have Quality Check QC Service?
A - QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation. Quality check for full process
Q - How can I Get Solution to my inquiry?
A - Pls send inquiry to us now,
More project and contact information more better. Engineers will make plan for you. Our Sales manager will Quote to you in the first time.

---
