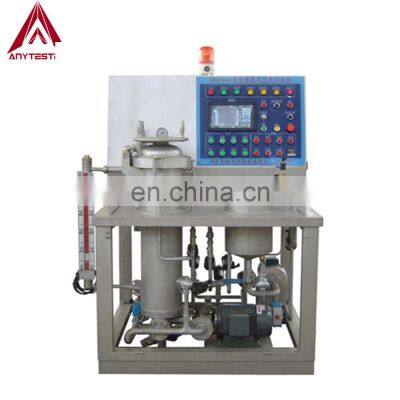

AT291 Series HTHP Fiber & Yarn Dyeing Machine (original model HY0240) is high temperature and high pressure sample dyeing machine that suitable for zipper cheese, bulk fiber, pure cotton, polyester, polyester cotton bobbin yarn sample dyeing, wool yarn, hank yarn etc.
Specification
Model
| AT291A
| AT291B
|
Type
| Semi-automatic
| Fully automatic
|
Capacity
| 1 ~ 6 kg
|
|
Design pressure
| 0.44MPa
|
|
Max. working pressure
| 0.4MPa
|
|
Design temperature
| 140℃
|
|
Max. working temperature
| 135℃
|
|
Heating rate
| 5℃/min
|
|
Cooling rate
| 3℃/min
|
|
Bath ratio
| 1:6 ~ 1:15
|
|
Pump motor
| 2.2 KW
|
|
Power supply
| 220V, 50Hz
|
|
Dimensions
| 950mm×900mm×1700mm
|
|
Weight
| 250kg
|
|
Details & Features
★ It is widely used for various sample with different configurations★ The main parts are imported from Europe, Taiwan, Hong Kong etc.
★ Stainless steel construction with bead blasting surface treatment to make the machine can make the machine can stand high temperature and high pressure
★ Inner surface of cylinder adopts acid etching surface treatment to protect cylinder against dyes.
★ The machine adopt PLC to control heating, cooling and constant temperature and make the dyeing process programmable
★ This machine are equipped with automatic water supplying system to save labor.
★ The HY0190B type is fully automatic type for pure cotton, polyester, polyester cotton bobbin yarn sample dyeing and equipped with computer control for heating, cooling, water inflow and outflow, dosing, return-flowing, stirring, main kier lever and dosing tank lever controlling.
★ Equipped with safety interlocking mechanism and stainless steel safety values is subject to temperature control, security protection can be set 85℃。
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Dimensions
| 1160x510x1050mm
|
Weight
| Approx. 80kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
