China Fire Fighting Truck Sinotruck HOWO 25000 Liters Foam Fire Emergency Rescue Escape Emergency Equipment Engine Fighting Truck

Product Description

Product Description
Introducing the HOWO 2500 gallon Fire Truck
The HOWO 2500 gallon fire truck, manufactured by Hubei Lihang Special Vehicle Co., Ltd, is a reliable and efficient vehicle designed for emergency response situations. With a powerful engine and a capacity of 16 tons, this fire truck is equipped to handle even the most challenging firefighting scenarios. It features state-of-the-art firefighting equipment, including water hoses, pumps, and storage compartments for essential tools and gear. The advanced technology and durable construction of the HOWO 2500 gallon fire truck make it a valuable asset for any fire department or emergency response team.
Trust in the HOWO 2500 gallon fire truck to deliver the performance and safety you need when it matters most.

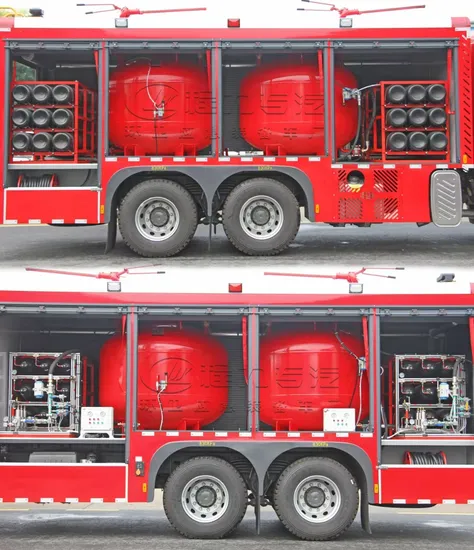

Detailed Photos
Product Parameters

Vehicles Parameters
Dimensions	Length/mm			9870
	Width/mm			2500
	Height/mm			3690
	Wheelbase/mm			4350+1300
	Front/Rear Thread/mm			1835/1640
	Approach/Departure Angle/°			20/13
	Front/Rear Overhang/mm			1180/1715
Chassis	Brand			HOWO
	Driven Mode			6x4, LHD
	Front Axle Load/kg			9000
	Rear Axle Load/kg			2*16000
	Braking System			Air Break
	Tyre			12R22.5, 10 pcs and one spare
	Gear Box			10 forwards 2 backward
	Max Speed/ km/h			105
	Beam			140mm Cross Beam
Cab	3+3 passengers
Engine	Model				WeiChai
	Horsepower/HP				371
	Displacement/L				8.9
	Max Torque				650N·m
	Speed at Max Torque/rpm				1500
Fire Fighting System
Fire Pump	Model		CB10/40
	Flow/ L/s		40
	Pressure/MPa		1.0
	Water Suction Time/s		Less than 35(when height is 7m)
	Installation Mode		Rear-mounted
Fire Monitor	Model		PS40
	Pressure/MPa		1.0
	Flow/ L/s		40
	Range/m		More than 60
	Horizontal Rotating Angle/°		360
	Pitching Rotating Angle/°		-30~80
	Operation Mode		Manual
Pipeline Systems	Internal Inflow Pipe		One pc φ125mm pipe with one pc φ125mm flygate
	External Inflow Pipe		Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
	Water Outlet Pipe		-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves -One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
	Water Injection Pipe		-One pc φ50mm internal water injection pipe -One pc φ65mm external water injection pipe
	Cooling Water Pipe		Equipped with stainless steel ball valve
	Drain Pipe		In the lowest position of the pipe
Water Tank	Loading Capacity/kg		16000
	Material		Quality Carbon Steel Plate
	Thickness		Baseboard and Endplate: 4mm Side plate and top plate: 3mm
	Structure		Welded Type, Anti-swing Plate Inside -One Manhole, with fast lock & unlock device -One Overflow Device -One Level Indication Device -One Drain Hole, controlled by manual valve
Electrical System	-Above the driving room are lightbar & 12V/60W fire scene light -Above both sides of the vehicle are two flash lights -100W alarm light -Switches of all the lights, alarms and pumps on the control panel.
Foam Tank	Structure	Connected
	Capacity/kg	2000
	Material	Quality
	Base: Side Plate: Anti-swing Plate	4:4:3
	Other Detail	-One Manhole, with fast lock & unlock and pressure-release device -One Overflow Device: DN50mm -One Drain Hole with ball valve: DN40
Powder Cylinder	Power System	Including Pressed Nitrogen and Burned Gas
	Capacity/kg	2000

Packaging & Shipping
Company Profile
Our Advantages
Welcome to Hubei Lihang Special Vehicle Co., Ltd Discover our top-notch vehicle products designed to meet your needs:
Professional Technology: Our R & D Team boasts over 30 years of experience in the auto field.
Better Quality: Equipped with advanced production equipment and a strict quality inspection team for superior product quality.
Reasonable Price: Competitive pricing without compromising on quality.
Thoughtful Service: 24/7 online customer service, extended warranty, and prompt responses to pre-sale and after-sale inquiries.
On Time Delivery: Ensuring timely delivery during peak seasons and early delivery during off-seasons.
Strong Strength: With a total investment of 1 billion RMB, a factory spanning 350,000 square meters, and annual sales of 2 billion RMB in vehicle products.
After Sales Service
Hubei Lihang Special Vehicle Co., Ltd
Product Description Pre-sales
Free Pre-Sales Consulting
Free videos and picture offering
Availability of any technical information
Offering progressive solutions to reduce costs
After-sales
Full technical support via e-mail, video, or call
Lifelong maintenance and spare parts supply
Free training for installation and operation
Quick response within 12 hours to minimize losses

FAQ
Hubei Lihang Special Vehicle Co., Ltd
Welcome to Hubei Lihang Special Vehicle Co., Ltd We are a leading manufacturer of pressure vessels, bobtails, trailers, trucks, and skid-mounted stations, along with spare parts. Our factory is located in Suizhou City, Hubei Province, China.
If you wish to visit us, you can fly to Wuhan Tianhe Airport, and we will arrange a special car to pick you up for a factory inspection. We have a professional R&D team that can customize products to your exact requirements.
We provide various certifications such as BV, DOT, ADR, and SASO. Our preferred payment terms are T/T and L/C, and we can arrange shipment based on trade terms.
At Hubei Lihang Special Vehicle Co., Ltd, we offer lifelong tracking service, one-year free warranty, free training, technical support, and original spare parts free of charge by air. All our packing complies with exporting standards, and the lead time is typically 7-25 working days.
For any other inquiries, please feel free to contact us, and we will respond promptly.

---
