360X1120 Yuntai Ce Certificate Rubber Three Roll Calender/ Rubber Calender

Product Description

Product Description:
What is the specification of the machine?
Usage: For rubber calendering, laminating and sheeting.
Three Roll Mill Rubber Calender
Roller type: I type, F type (reverse L)
Model: XY-230X635 XY-300X900 XY-360X1120 XY-400X1200
XY-450X1400 XY-560X1700 XY-610X1730

Model			XY-3I 230 XY-3L 230 XY-3Г 230	XY-3I 300 XY-3L 300 XY-3Г300	XY-3I 360 XY-3Г 360 XY-3L 360	XY-3I 400 XY-3Г 400	XY-3I 450 XY-3Г 450	XY-3I 560 XY-3Г 560	XY-3I 610 XY-3Г 610
Roll diameter		mm	230	300	360	400	450	560	610
Roll working length		mm	635	900	1120	1200	1400	1700	1730
Roll ratio			1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
Middle-roll linear speed		r/min	2-10	2-17	0-22	23.92	2-24.99	0-30	0-30
Adjusting nip range		mm	0-6	0-8	0-10	0-10	0-6	0-10	0-10
Min.Calendering product thickness		mm	0.2	0.2	0.2	0.2	0.2	0.2	0.15
Max.calendering product width		mm	600	700	900	1000	1200	1500	1530
Motor power		kW	15	22	45	55	75	110	132
Overall dimensions	L	mm	2550	3700	4700	5200	6400	7000	7500
	H	mm	910	1280	1700	1860	2200	2600	2700
	W	mm	1675	2050	2350	2100	2900	3700	3830
About weight		tons	~3.2	~6	~11.7	~15	~20	~38	~45

Bearing Rolls, Harden Tooth Reducer, CE Approval
Two Roll Mill Rubber Calender
Roller type: I type
Model: XY-160X320 XY-250X620 XY-360X1120
XY-450X1400 XY-550X1700 XY-610X1730

Model Item			XY-2I 160x320	XY-2I 250x620	XY-2I 360x1120	XY-2I 450x1400	XY-2I 550x1700	XY-2I 610x1730
Roll diameter		mm	160	250	360	450	550	610
Roll working length		mm	320	620	1120	1400	1700	1730
Roll ratio			1:1	1:1	1:1	1:1	1:1.08	1:1
roll linear speed		m/min	7.79	1.2-12	3-20.2	2.5-24.8	2-18.7	4-36
Adjusting nip range		mm	0-4.5	0-6	0-10	0-10	0-12	0-15
Min.Calendering Product thickness		mm	0.2	0.2	0.2	0.2	0.2	0.2
Calendering product width		mm	250	580	920	1250	1600	1500
Motor power		kw	5.5	15	37	45	75	90
Overall dimensions	L	mm	2200	3950	5400	7113	7420	5987
	W	mm	530	770	1542	1595	1760	1860
	H	mm	1470	1590	1681	2446	2760	2988
About weight		ton	~1.2	~5	~14.5	~22	~24	~30

Bearing Rolls, Harden Tooth Reducer, CE Approval
Four Roll Mill Rubber Calender
Roller type: I type, F type, S type
Model: XY-230X630 XY-360X1120 XY-400X1400
XY-450X1500 XY-610X1730 XY-710X2130

Model Item			XY-4 230x630	XY-4 360x1120	XY-4 400x1400	XY -4 450x1500	XY-4 610x1730	XY-4 710x2130
Roller diameter		mm	230	360	400	450	610	710
Roller wording length		mm	630	1120	1400	1500	1730	2130
Roller ratio			1:1:1:1	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	1:1.5:1.5:1
Middle -roll linear speed		m/min	2.1-21	2-20.1	3-26.3	2.5-25	8-50	3-30
Adjusting range		mm	0-10	0-10	0-10	0-6	20	0-20
Min.calendering product thickness		mm	0.2	0.2	0.2	0.2	0.15	0.15
Calendering product width		mm	500	920	1200	1250	1500	1900
Motor power		kW	15	55	75	110	160	185
Overall dimensions	L	mm	3800	3300	6600	6500	6580	7010
	W	mm	930	940	1620	1970	2460	4150
	H	mm	1890	2350	2490	2740	2920	3730
About weight		tons	~4.8	~14.6	~18.6	~33.5	~62	~100

Bearing Rolls, Harden Tooth Reducer, CE Approval

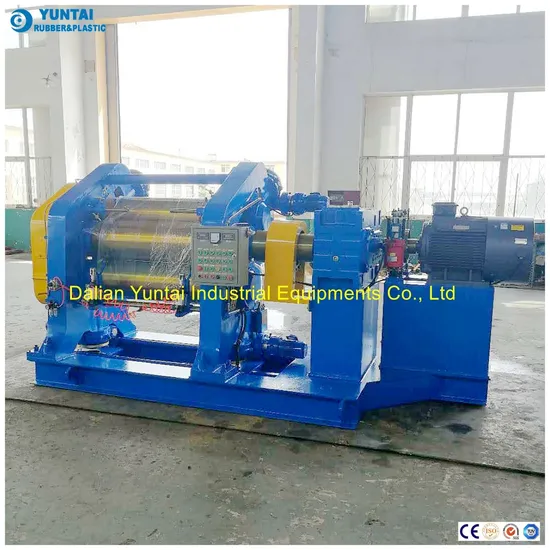

Pictures of the machine:
Could you show me more pictures of the machine?
What are the options and configurations?
1. Driving system: single shaft transmission with more strong power.
2. Roller gap adjustment: by manual or electrical (motor drive) for your choice.
3. Roller support: by bearing rolls, easy for parts replacement.
4. Lubrication system: by grease or oil pump for your choice.
5. Stock guider: moveable.
6. Gear reducer: ZSY harden tooth reducer.
7. Electrical components brand: CHNT, Siemens, etc. or other German brands for your choice.
What are your machine characters?
1. Roller material: chilled cast alloy iron LTG-H with hardness 68~72HSD.
2. Abrasion proof and corrosion resistant.
3. High precision gears with lower noise.
4. Speed ratio gears with necessary heating treatment.
5. High efficiency, energy saving and new design saves occupied space.
6. Interlock protection with reverse running function ensure low personal injury.
7. Our machines have CE certificate.
Company Information:
What is your company history?
Dalian Yuntai Industrial Equipments Co.,Ltd is a professional enterprise established in 1996, locates in Dalian industrial park, the most beautiful costal city in Liaoning Province. By our innovative and realistic culture, perfect internal management, good quality products service and steady market position, we have got a good reputation from our customers.
Our products involves in rubber mixing, sheeting and performing machinery, such as rubber kneader, Banbury mixer, bucket elevator, two roll mixing mill, rubber refiner, rubber cracker, batch off cooling machine, EVA foam sheet splitting machine, rubber bale cutter, strip cutter, rubber calender, rubber extruder, rubber strainer, etc.
Yuntai insists on the management strategy of "To promote the construction of modern marketing network". By our reliable quality, reasonable prices, prompt delivery and good after-sale service, we have won the trust of customers from all over the world. Our products have been distributed to Europe, South America, North America, Southeast Asia, Middle East area, Oceania, etc. We aim to create top famous brand in the world.
"Good Quality, Reasonable Price, Best Service" is our goal. We warmly and sincerely welcome customers all over the world to visit our factory and look forward to establishing long term cooperation and solid relationship to make mutual benefit.
Pictures of workshops:
Certificates:
What certificates do you have?
Service:
What is your aftersale service?
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
Payment:
What is your terms of payment?
Wire transfer: 30% advance by T/T, 70T balance by T/T before shipment.
Letter of credit: by irrevocable letter of credit at sight.
Western union: it is a fast and safe way.
Trade terms:
What is trade terms acceptable?
We can do FOB, C&F and CIF for your choice.
Contact:
How to contact you?
You can send us inquiry and leave your phone number, then we will contact you soon.

---
