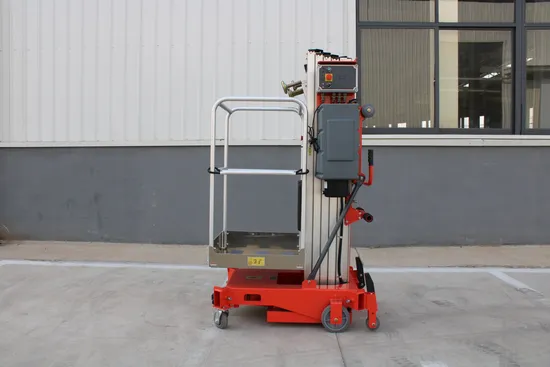

Gtwy1-9 9m 11m Aluminum Ladder Lift Platform Movable Man Lift Aerial Lift Platform Single Telescopic Boom Lifter Ladder Electric Cherry Picker with CE

US$3,000.00-4,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
GTWY1-9
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Push Around
Driven Type
AC&DC
Running Mode
Moving
Feature
Easy Operation
Certification
CE
Max. Working Height
11.2m
Max. Platform Height
9.2m
Loading Capacity
150kg
Occupants
1
Platform Dimension
0.67m X 0.66m
Transport Package
Nude Packing
Specification
3000
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
4000 Pieces/Year

Packaging & Delivery

Package Size
140.00cm * 80.00cm * 200.00cm
Package Gross Weight
420.000kg

Product Description

Model GTWY1-5 GTWY1-6 GTWY1-8 GTWY1-9 GTWY1-10 GTWY1-12
Max. Working Height 6.7m 8.2m 9.8m 11.2m 12.4m 14m
Max. Platform Height 4.7m 6.2m 7.8m 9.2m 10.4m 12m
Loading Capacity 150kg 150kg 150kg 150kg 136kg 120kg
Occupants 1 1 1 1 1 1
Platform Dimension 0.67m x 0.66m 0.67m x 0.66m 0.67m x 0.66m 0.67m x 0.66m 0.67m x 0.66m 0.67m x 0.66m
Overall Height 1.99m 1.99m 1.99m 1.99m 1.99m 2.68m
Overall Width 0.78m 0.78m 0.78m 0.78m 0.78m 0.81m
Overall Length 1.24m 1.24m 1.36m 1.4m 1.42m 1.46m
Outrigger coverage 1.7m x 1.7m 1.7m x 1.7m 1.7m x 1.7m 1.8m x 1.8m 1.9m x 1.8m 2m x 1.9m
Total Weight AC 330kg 350kg 370kg 390kg 420kg 490kg
Total Weight DC 355kg 375kg 395kg 415kg 445kg 515kg
Power AC 380V/220V/110V 380V/220V/110V 380V/220V/110V 380V/220V/110V 380V/220V/110V 380V/220V/110V
AC Motor 0.75KW 0.75KW 0.75KW 0.75KW 0.75KW 0.75KW
Power DC 12V 12V 12V 12V 12V 12V
DC Motor 1.3KW 1.3KW 1.3KW 1.3KW 1.3KW 1.3KW
Charger 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A

Features
Outriggers with interlock
AC power to platform
Emergency stop button
Emergency lowering system
Easy loading in pickup trucks
Two controllers operation
Forklift pockets
Transport tie hole
Deadman Switch
Cylinder holding valve
Options:
Overload sensor with alarm
Beacon
All motion alarm
Leveling sensor
