Basic Info.
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Helium Gas
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Transport Package
Cylinder
Production Capacity
2000 Cylinders/Month
Product Description
Product Description
Helium is a highly specialized product. It's chemically inert and non-flammable, with high thermal conductivity, low molecular weight and size, and the lowest boiling point known.
Product details
| Specification | ≥99.999% | ≥99.9999% |
| Carbon Monoxide | <1 ppm | <0.1 ppm |
| Carbon Dioxide | <1 ppm | <0.1 ppm |
| Nitrogen | <1 ppm | <0.1 ppm |
| CH4 | <4ppm | <0.4 ppm |
| Oxygen+Argon | <1 ppm | <0.2 ppm |
| Water | <3 ppm | <1ppm |
Application
*Aerospace & Aircraft:From manufacturing to flight, helium is widely utilized throughout the aerospace and aircraft industry. In space flight operations, helium is used to purge hydrogen systems and works as a pressurizing agent for ground and flight fluid systems. It is also a source of lift in weather and other surveillance balloons.*Automotive & Transportation Equipment:Helium is used to test critical automotive parts such as radiator heat exchangers, air conditioning components, fuel tanks and torque converters to ensure they meet quality specifications. It is also used in combination with argon as a source of inflation in a growing number of airbags. *Diving:In combination with oxygen, helium is used in diving to help eliminate nitrogen narcosis, reduce breathing resistance at depth, and shorten decompression stops. Known as heliox, the mixture allows divers to reach greater depths for longer periods of time. The deeper the dive, the higher the concentration of helium, allowing divers to explore more and weld longer.*Cryogenic Cooling Use:Helium gas widely used in maglev train and medical Nuclear magnetic resonance (NMR) imaging equipment.*Ballon Use:Inflat for ballon for brithday party or celebration or inflat for airship.*Check Analyse:Helium gas widely used in vaccum leak detection such as helium mass spectrometer leak detector.
Packaging & Shipping

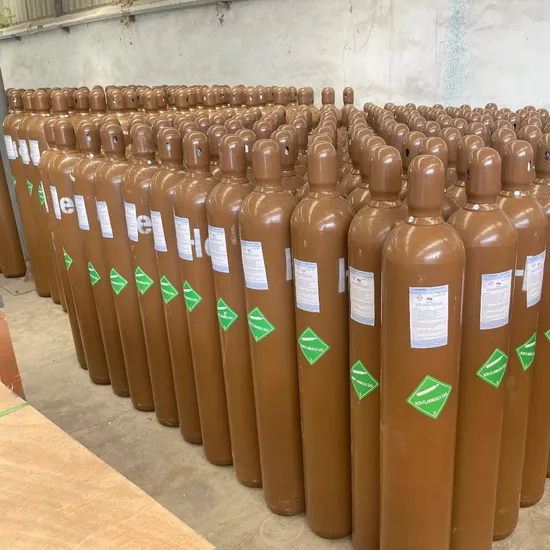

| Package Size | 40L-150BAR | 50L-150BAR | 50L-200BAR |
| Filling Content/Cyl | 6 CBM | 7.5 CBM | 10 CBM |
| Working Pressure | 150BAR | 150BAR | 200BAR |
| Test Pressure | 250BAR | 250BAR | 300BAR |
| Wall Thickness | 5.7MM | 5.7MM | 5.7MM |
| QTY Loaded in 20'Container | 450 Cyls | 350 cyls | 350 Cyls |
| Total Volume | 2700 CBM | 2625 CBM | 3500 CBM |
| Cylinder Tare Weight | 47.8 Kgs | 52 kgs | 52 Kgs |
| Material | 37Mn | 37Mn | 34CrMo4 |
| Valve | BS341 / CGA 580 |
Company Profile
FAQ
1. What's your product price?
Because each gas price is depends on the market supply and demand, quantity and purity, it is difficult to give a fixed price. If you have any interested in each gas, pls give your details requirement. I could like to make an offer to you.
2. What's the min order?
Different products have different min order. Please don't hesitate to let me you're your requirement.
3. What's the delivery time?
If the cylinder is in the stock, and only need to fill gas, the delivery is about 7-10 days ex work after receive the deposit. If the cylinder need to customize, the delivery is about 15-35 days ex work after receive the deposit. That is depends on the quantity.
4. How to check the gas quality?
Firstly, our cylinder will take a treatment (cleaning, drying, vacuum pumping, and replacement before filling gas. In this way, the cylinder inside is clear and dry.
Secondly, we will take tests every treated cylinder to assure them inside purity. Thirdly, we will take a test for all of the gas after fill into cylinders. If the tested gas is not up to standard, we will produce it again and not release the faulty product to ex work. At last, we will supply you the gas test qualified report .
5. All the cylinders can recycle?
Usually seamless steel cylinder can recycle to use in 20 years. The disposable cylinder is only for use one time.
6. Shall we send back the cylinders to China to refill gas again?
Yes, when you ordered our cylinders, next time, you can send back the cylinders to fill gas again. You just need to tell us before you export. We will handle all the importcustoms clearance formalities.
>>
