Top Brand Xuzhou 37m Truck Mounted Concrete Boom Mixer Pump Hb37V for Sale

Product Description

Product Description

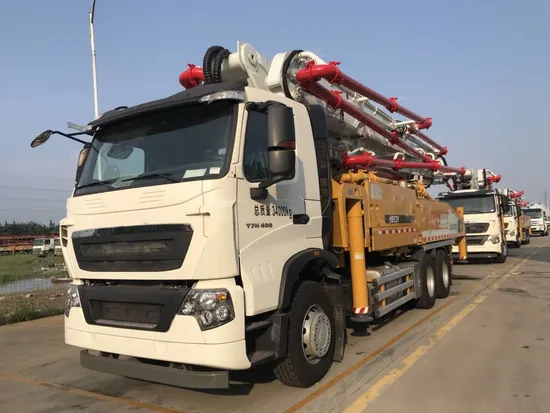

Top Brand Xuzhou 37m Truck Mounted Concrete Boom Mixer Pump HB37V for Sale
Powerful Performance The HB37V is equipped with a MC07H.35-50 engine, delivering a maximum power of 257 kW and a maximum torque of 1400 N·m/(1200-1600 r/min). Its theoretical output reaches up to 120 m³/h, with a concrete pumping pressure of 8 MPa, ensuring high efficiency in various working conditions.

Excellent Mobility With a maximum speed of 89 km/h and a maximum grade-ability of 35%, the HB37V can move smoothly on construction sites. The axle distance of 4400 + 1400 mm and the tire specification of 315/80R22.5(20PR) and 295/80R22.5(18PR) provide good stability and adaptability.
Versatile Pumping System The HB37V has a delivery cylinder diameter of 230 mm and a stroke of 1600 mm, capable of handling concrete with a maximum aggregate diameter of 40 mm. The filling height is 1540 mm, and the concrete slump range is 8-23 cm, making it suitable for a wide range of concrete types.
Advanced Boom Design The placing boom of the HB37V has a maximum reach height of 37 m and a maximum reach depth of 24.9 m. It also has a slewing radius of 32.5 m and a slewing angle of 360°, providing excellent coverage and flexibility. The boom can unfold at angles of 90°, 180°, 230°, and 210° for different sections, ensuring optimal positioning.
Stable and Reliable The HB37V features a stabilizer span of 7000 mm and a longitudinal span of 6500 mm for the front stabilizer and 7350 mm for the rear stabilizer. It is equipped with an automatic lubrication system and offers both manual and remote control options, ensuring stable operation and easy maintenance.

Product Parameters
