Factory Designchicken Poultry Animal Pellet Feed Production Machine Line

Product Description

Factory designChicken Poultry Animal Pellet Feed Production Machine Line
1.Introduction:
The poultry feed pellet production line can be make feed pellets for all kinds of poultry,
and it suitable for most small and medium feed mills,the feed pellet can be used to own farm to use,and for marketing
2.Application scope :
3.Finished Products:
The granules are formed at one time, easy to feed, store and transport,and you can make 2-8mm diameter animal feed pellets.
a. For pig, the pellet diameter is usually 3.5-6.5mm.
b. For cattle, the pellet diameter is usually 4.5-8mm.
c. For chicken, pellet diameter is usually 3.2mm.
d. For fish, pellet diameter is usually.0.9-3.0mm.
e. For shrimps, pellet diameter is usually 1.0-3.5mm.
Pellet length is customized.
4.How to work:
Process of animal poultry feed pellet plant:
Raw material > Grinding System > Mixing System > Pelleting System > Cooling System > Crushing System > Screening System > Packing System

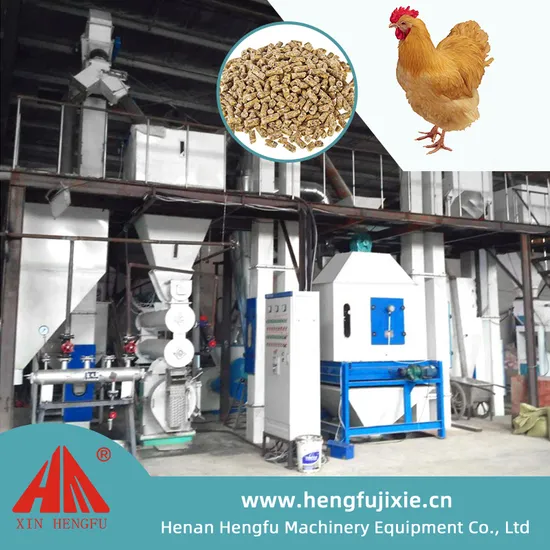

10T/H feed pellet production line
Equipment introduction
5.Product Paramenters:

Model	Transfer Method	Main Power(kw)	Feeder Powder(kw)	Conditoner Power(kw)	Capacity(t/h)
9KWH250	Belt Drive	22	1.5	2.2	0.5-1.5
9KWH304	Belt Drive	30/37	1.5	2.2	1-3
9KWH320	Gear Drive	37	1.5	2.2	2-4
9KWH350	Gear Drive	55	1.5	3	3-6
9KWH400	Gear Drive	75/90	2.2	3	7-10
9KWH420	Gear Drive	110	2.2	3	10-15

6.Production Features:
7.Customer Case:
The product sales area has been spread across more than 30 provinces,municipalities and autonomous regions, and exported to more than 30 countries such as Garner,Botswana, Benin, Ivory Coast, Mozambique, Indonesia, Malaysia and Korea.

---
