Product Description
Product Description
Product Description

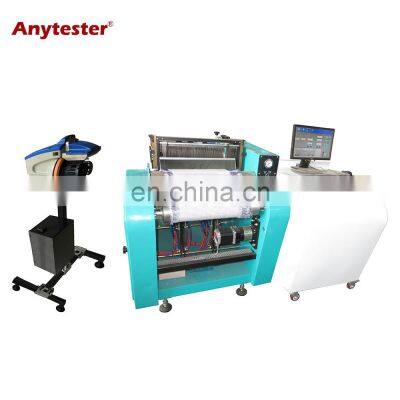

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Features
Consists of control part (computerized control platform) and mechanical part (loom);
Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
Mechanical let-off, beating-up and take-up and pneumatic shedding;
Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
Heald frames up to 20pcs, easy to mount and dismount;
Professional software for designing or editing patterns;
Specification
Model
| AT247
|
Reed width
| (16, 20 and 24 inch, optional)
|
Yarn linear density range
| 5~500tex
|
Weft density
| 30~45weft/min, selectable
|
No. of heald frame
| 4~20
|
Color selection
| 1 color
|
Let-off
| Active electronic control
|
Take-up
| Motor control
|
Shedding
| Dobby shedding, pneumatic control
|
Beating-up
| Motor control
|
Air pressure
| 0.45~0.8Mpa
|
Air consumption
| Max. 500L/min
|
Power
| A220V 50Hz, single-phase
AC380V 50Hz, three-phase
|
Packing & Delivery
Packaging
|
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
| 30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
| 30% T/T in advance,paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
| Amount lower than 50,000usd
|
|
Delivery Time
| 7~10 days after receiving payment for one container
|
|
|
Related Products
AT241C Automatic Single Yarn Warping Machine
| AT241B Small Sample Warping Machine
| AT246A Semi-Automatic Sample Loom
| AT248 Automatic Rapier Sample Loom
|
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
