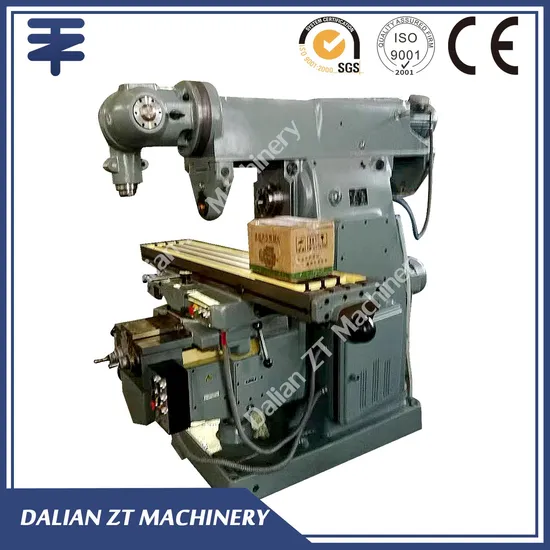

X6232cx16 Universal RAM Rotary Head Milling Machine

US$12,000.00-28,000.00 1 set (MOQ)

Basic Info.

Model NO.

X6232Cx16

Structure

Ram

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Integral

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table Size

1600X320mm

RAM Travel

550mm

Table Travel (X/Y/Z)

800X255X320mm

Main Motor Power

5.5kw(H) 3kw(V)

Distance Between Spindle Nose and Table

30-350mm

Distance Between Vertical Nose and Tab

250-570mm

Distance Between Spindle Axis and Arm Su

350mm

T-Slots(No./Width/Pitch)

3/18/70mm

Weight of Machine

3100kg

Transport Package

Wooden Case

Specification

2294x2045x2158mm

Trademark

Dalian ZT Machinery

Origin

China

HS Code

8459699000

Production Capacity

300 Sets/Month

Product Description

Features:
* The milling machine with automatic feed controlled one servo motor in X,Y,Z-axis;
* One handle is used to control forward/backward movement in X,Y,Z-axis

Machine model	X6232x16	X6232Cx16
Table size	320x1600mm	320x1600mm
T-slot (No. width x Distance)	3-18x70mm	3-18x70mm
Table rotary angle	±45°	±45°
Max. working load	500kg	500kg
Travel (longitudinal/cross/vertical-manual)	800x255x320mm	800x255x320mm
Travel (longitudinal/cross/vertical-automatic)	780x240x300mm	780x240x300mm
Spindle motor power (H/V)	5.5/3kW	5.5/3kW
Spindle bore (H/V) Tool shank (H/V)	ISO(50/4)x	ISO(50/4)x
Spindle speed (H/V)	18 No.s-1500/9No.S 125-2000rpm	18 No.s-1500/9No.S 125-2000rpm
Distance from spindle centerline to worktable	30-350mm	30-350mm
Distance from vertical spindle nose to worktable	40-425mm	250-570mm
Distance from vertical spindle centerline to column guideway	350mm	350mm
Vertical head swivel angle	360°	360°
Feed rate (longitudinal, cross, vertical)	1.5kW	1.5kW
Weight of machine	3100kg	3100kg
Overall dimensions of machine	2294x2045x2158mm	2294x2045x2158mm

Standard accessories:
Handle
Spanner
Draw-bar
Cooling pipe pillar
Milling arbor B-22X60X390 B-27X60X390 32X60X750
Milling arbor for milling machine end cutter 3-40
Cylindrical cutter chuck155(40#)
Sleeve for cutter shank 2-3
Reduction sleeve 3-2
Cutter Arbor 22X35X110 27X40X110
Milling arbor for head22X63
Face milling cutter arbor wrench 16 30
Miller draw-barM24X720
Anchor boltM20X500
Single wrench50
360° Rotary Milling Head
