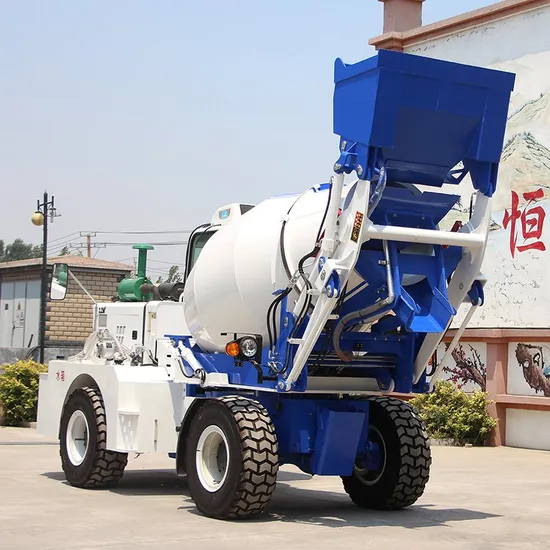

High Efficiency Output 3.6m3 Rotary Drum Capacity Small Concrete Mixer Truck in Ghana

Product Description

Product Description
Self Loading Concrete Mixer Advantage:
The Independent water pump is convenient to work
Independent can body motor heat dissipation, extended continuous working time
Increase the water tank to meet the needs of the water shortage environment
The 360-degree camera has a wider working field of vision
The forward tilting unloading function makes the unloading more thorough and faster
Product Parameters

Specifications	Unit	Parameter
Model	/	HWJB350
Actual stirring capacity	m³	3.5
Rotary drum capacity	m³	3.6
Degree of bias	°	16
Rotational speed	r/min	10-20
Direction of rotation		Feed:clockwise output:counter clockwise
Mixing drum blade		Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete	mm	70-260
Hydraulic Power Transmission System
Pump model		CBGV-4025
Hydraulic motor model		BM5-400
Reducer ratio		01:24
Water Supply
Tank capacity/ water supply form	L	540/ automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement	L	CF4C100T-Z-13B2
model		Straight injection type four stroke water cooled supercharged diesel engine
Rated power	kw/r/min	91KW/2600
Max torque	N.m/r/min	380/1500-1800
Max running speed	km/h	24
Min steering radius	mm	4500
Climbing capacity	%	26
Tire		16/70-20
Driving way		4×4
Weight	kg	7500
Maximum load capacity	kg	7800
Whole machinery weight	kg	15300
Overall size(L*W*H)	mm	6650*2600*3200
The wheelbase	mm	3000
Bucket capacity	m³	0.6

Detailed Photos
If you want to know more details, please contact me, I will arrange our account manager to introduce to you, for product detail function, our account manager is professional
tank design
both wet and dry materials can be stirred, easy to stir, with automatic cleaning

auxiliary radiator
when the temperature of the hydraulic oil exceeds 55°C, the auxiliary fan heater will automatically turn on.

cab design
the air conditioneris installed on the top of the cab,so there is no fear of outdoor temperature and the operation time is long
Customer feedback
This is the customer's use pictures in different scenarios, if you want to know more about the pictures and videos of the machine in use, please contact me and I will send it to you

Product Application
Widely used in sand and ash mixing for home improvement bricks, pavement paving sand ash mixing, garden engineering sand ash mixing, floor concrete mixing, small construction site masonry mortar, plastering mortar mixing, electric power communication and other field operations sand and ash mixing, seedling fertilizer Stirring, home brewing koji stirring and other scenes. Small mixers are widely used in municipal engineering, small water conservancy projects, rural house construction, house decoration, power communication engineering, harsh mountain environment, leisure agriculture, loosening soil, weeding, etc.
Packaging & Shipping
This is the picture of concrete delivery. The delivery is usually by sea. We have cooperation with many sea freight. If you have any requirements during the delivery process, please let us know in advance and contact us.
Certifications
Hengwang concrete mixer trucks have CE Certification.
Company Profile
Jining Hengwang Mining Machinery Co., Ltd. which belong to Shandong Hengwang Group Co., Ltd., is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.
FAQ
Q:Are you manufacturer? 270 Rotation Concrete Mixer Truck with 3.5cbm A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packagesbefore you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed
for anew one.And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine? A: All of our products coming with the certificates of CE, IS09001.

---
